Michigan Wholesale Tool Supply

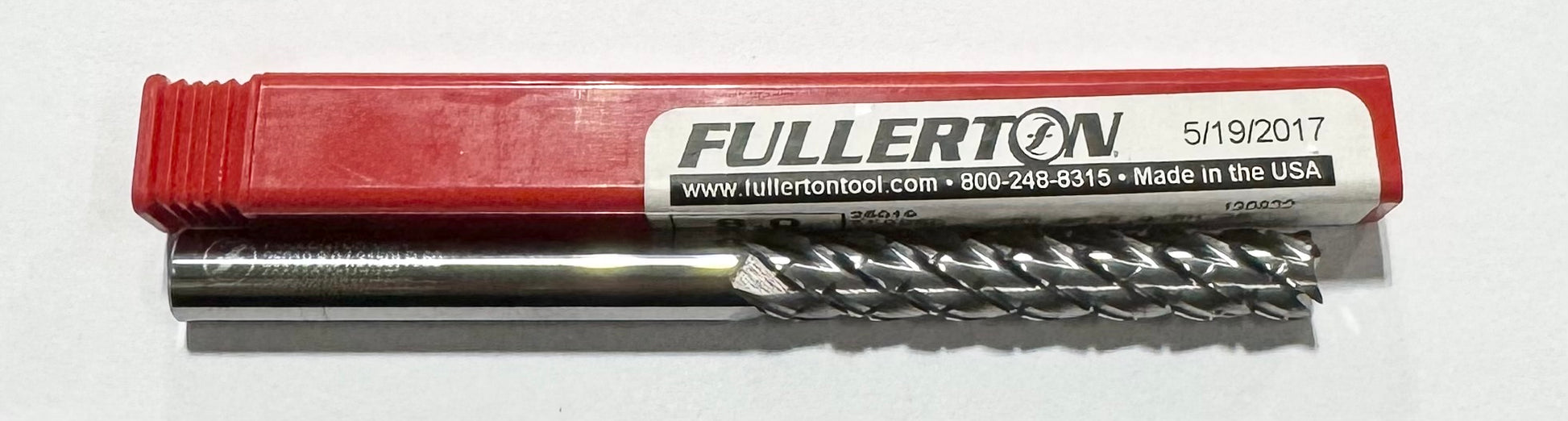

Fullerton 8mm Carbide Chip Breaker End Mill .50mm Radius 5 Flute USA
Fullerton 8mm Carbide Chip Breaker End Mill .50mm Radius 5 Flute USA
Regular price
$15.60 USD
Regular price
$0.00 USD
Sale price
$15.60 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.
Low stock: 2 left
Couldn't load pickup availability
Features
- The 5500 MATRX is a 5-flute, high performance end mill that allows for ultimate material removal rates in carbon composites, fiberglass, fiber reinforced materials, plastics, and green ceramics
- Its high shear and low cutting forces provide a clean edge with minimal material delamination or tearing of fibers
- The 5500 MATRX is stocked uncoated and with FC-1 coating
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3150" |
| Cutting Flute Length (Decimal Inch) | 1.8898" |
| Shank Diameter (Decimal Inch) | 0.3150" |
| Overall Length (Decimal Inch) | 3.9370" |
| Mill Diameter (mm) | 8mm |
| Cutting Flute Length (mm) | 48mm |
| Shank Diameter (mm) | 8mm |
| Overall Length (mm) | 100mm |
| Radius (mm) | 0.50mm |
| Finish/Coating | Uncoated |
| Number of Flutes | 5 |
| Helix Angle | 35 Degree |
| Flute Spiral Direction | Right Hand Spiral |
| Cutting Direction | Right Hand Cutting |
| Coolant Thorugh (Yes/No) | No |
