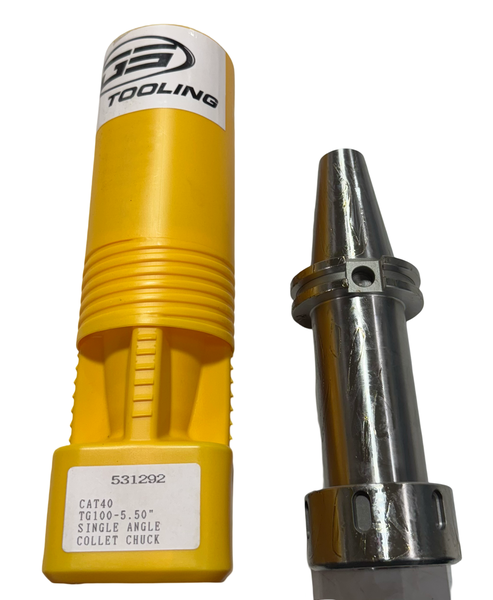

GS Tooling CAT40 Collet Chuck TG100 x 5.50"
GS Tooling CAT40 Collet Chuck TG100 x 5.50"
Regular price
$49.99 USD
Regular price
$0.00 USD
Sale price
$49.99 USD
Unit price
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
GS Tooling CAT40 Collet Chuck TG100 x 5.50"
PRODUCT DESCRIPTION
Features
- DIN coolant through the flange
- Shank traverse ground to obtain optimum accuracy
- Meets or exceeds ANSI specifications
- 0.0002" or better ensures the best possible cutting tool life
- Factory balanced to save spindle life, tool life and increased productivity
- Threaded through holes for a back-up screw (tool stop) or coolant through when removed
- CAT40 Premium balanced to 20,000 RPM
- CAT50 Premium balanced to 15,000 RPM
Product Specifications
| Manufacturer Part Number | 531292 |
| Collet System | Single Angle |
| Collet Series | TG100 |
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Projection (Decimal Inch) | 5.5" |
| Minimum Collet Capacity (Inch) | 3/64" |
| Maximum Collet Capacity (Inch) | 1" |
| Balanced to (RPM) | 20000 RPM |
| Collet Nut Diameter (Decimal Inch) | 2.5" |
| Seat Depth (Decimal Inch) | 2.13" |
| Tightening Torque (Nm) | 81.3 |
| Product Type | Collet Chuck |
