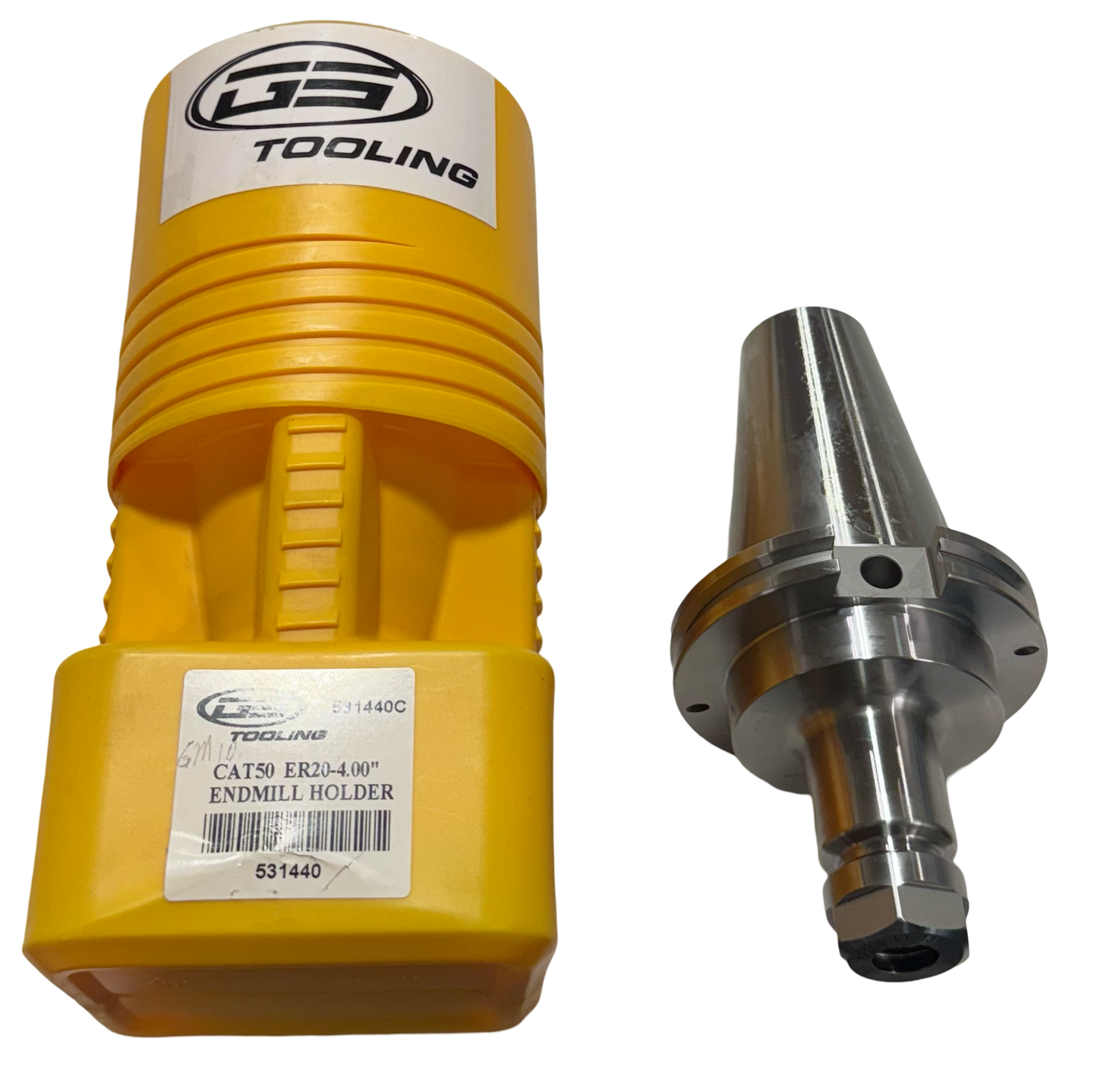

GS Tooling CAT50 Collet Chuck ER20 x 4"
PRODUCT DESCRIPTION
GS Tooling CAT50 4.00" ER20 Collet Chuck - 531440
- Shank Type: Taper Shank
- DIN Coolant option - standard
- All Ground Body
- Factory Balanced to save spindle life, tool life and increased productivity
- Threaded through holes for a back-up screw (tool stop) or coolant through when removed
- Wrench not included
- Premium balanced to G2.5 @ 30,000 rpm
| Minimum Collet Capacity | 0.039" |
| Maximum Collet Capacity | 0.511" |
| Balanced to (RPM) | 25000 |
| Collet Nut Diameter | 1.38" |
| Seat Depth | 1.06" |
| Tightening Torque (Nm) | 81.3 |
