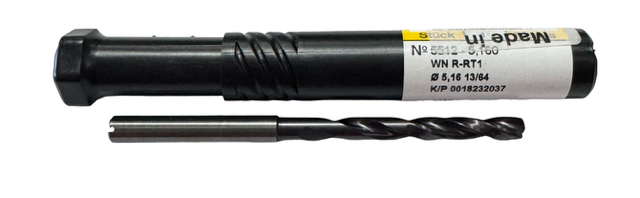

Guhring 13/64" Solid Carbide drill 7xD nano-FIREX Coating Coolant Thru 2 Flute

PRODUCT DESCRIPTION

Drill Bit Size (Inch): 13/64	Drill Bit Size (Decimal Inch): 0.2031
Tool Material: Solid Carbide	Drill Point Angle (Degrees): 140
Coating/Finish: Proprietary	Flute Length (Decimal Inch): 1.9685
Flute Length (mm): 50.00	Flute Type: Regular Spiral
Cutting Direction: Right Hand	Point Type: Standard
Coolant Through: Yes	Shank Type: Straight-Cylindrical
Proprietary Coating Designation: nano-FIREX®	Threaded Shank: No
Flute Length x Diameter Ratio: 7xD	Overall Length (mm): 90.00
Overall Length (Decimal Inch): 3-3/4	Material Application: Hard Material; Stainless Steel; Brass; Cast Iron; Steel; Nickel Alloy; Titanium Alloy
Series: 5512	Shank Diameter (Decimal Inch): 0.2362
Flute Length X Diameter Ratio: 7xD	Maximum Drilling Depth (Decimal Inch): 1.6640
Maximum Drilling Depth (mm): 42.26	Shank Length (Decimal Inch): 1.5748
Drill Bit Diameter Tolerance: +0.004 to +0.016 mm	Tool Application: Self-Centering
Web Thinning: Web-Thinned	Web Configuration: Tapered
