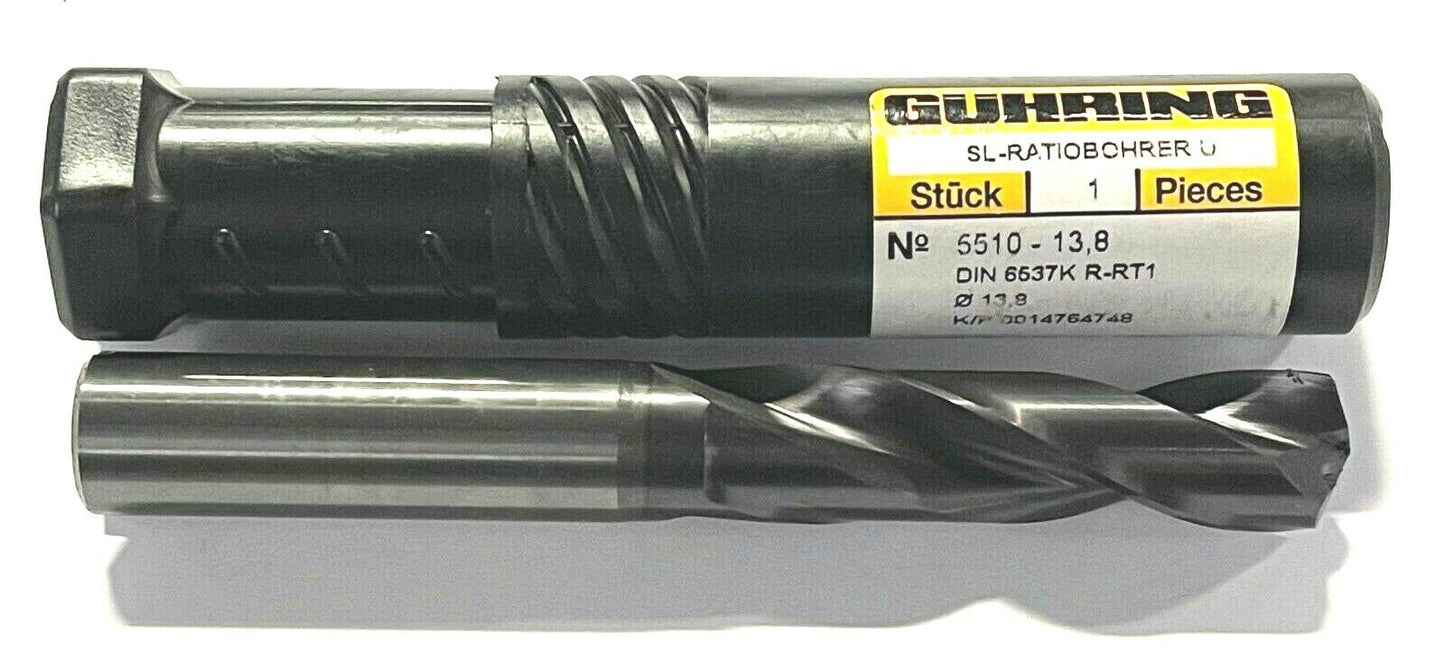

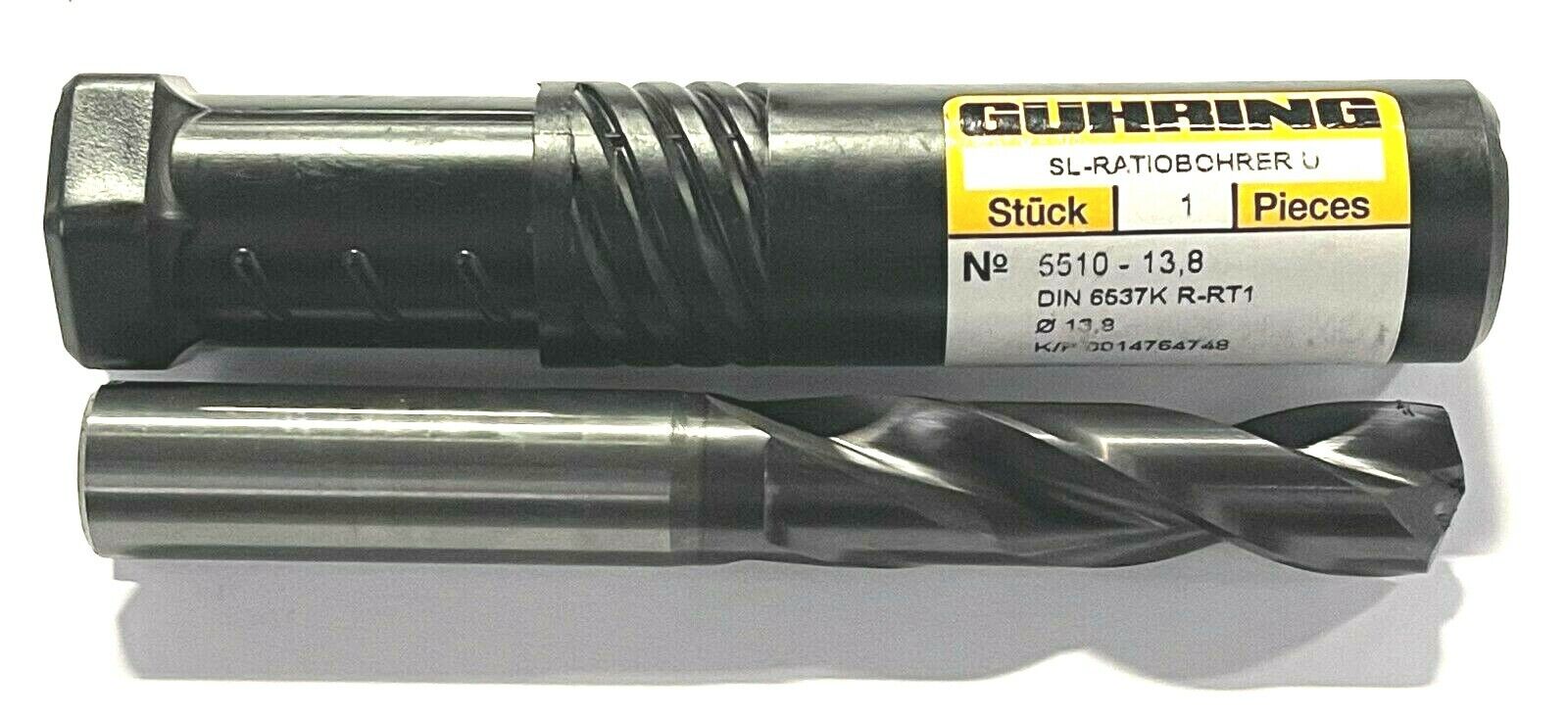

Guhring 13.8mm High Performance Solid Carbide Drill 3xD nano-FIREX Coolant Thru

PRODUCT DESCRIPTION

GUHRING

HIGH PERFORMANCE SOLID CARBIDE DRILL

Drill Bit Size / Cutting Diameter (DC)	13.8 mm	Cutting Edge Material	Carbide
Decimal Equivalent	0.5433″	Tool Type	Carbide Drill
Drill Bit Size / Cutting Diameter (DC) - Metric	13.8 mm	Measurement Type	Metric
Length Group	3xD	Series/List #	5510
Coating	nano-FIREX	Usable Length (LU)	39.3 mm
Connection Diameter Machine Side (DCONMS)	14 mm	Length Chip Flute (LCF)	60 mm
Coolant Supply Property (CSP)	Coolant Thru	Overall Length (OAL)	107 mm
Point Angle (SIG)	140 Degrees	Flute Count (NOF)	2
Flute Helix Angle (FHA)	30 Degrees	Cutting Direction (HAND)	Right Hand
Shank Type	Round	Body Material	Carbide
Shape	Solid Carbide
