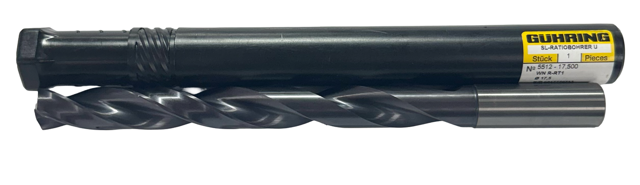

Guhring 17.5mm Solid Carbide Drill 7xD nano-FIREX Coating 2 Flute Coolant Thru

PRODUCT DESCRIPTION

Description	SC Drill; 17.5 mm Dia. x 18 mm Shank Dia. x 223 mm OAL x 171 mm LCF ; 140 Degrees ; 7xD ; TiAlN ; Series 5512
Body Material	Carbide
Brand	Guhring
Coating	nano-FIREX
Connection Diameter Machine Side Dconms	18 mm
Coolant Supply Property CSP	Coolant Thru
Cutting Direction Hand	Right-Hand
Cutting Edge Material	Carbide
Decimal Equivalent	0.689"
Drill Bit Size Cutting Diameter DC	17.5 mm
Drill Bit Size Cutting Diameter DC Metric	17.5 mm
Flute Count Nof	2
Length Chip Flute LCF	171 mm
Length Group	7xD
Measurement Type	Metric
Overall Length Oal	223 mm
Point Angle Sig	140 Degrees
Serieslist	5512
Shank Type	Round
Shape	Solid Carbide
Tool Type	Carbide Drill
