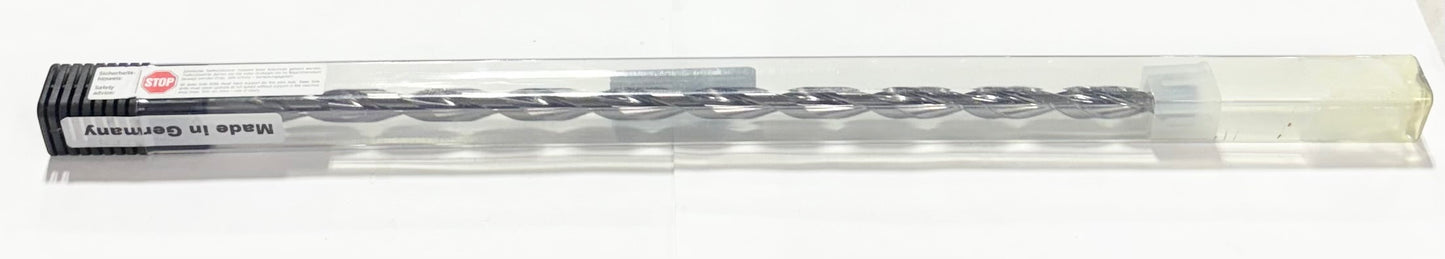

Guhring 29/64" Solid Carbide Drill 25xD Coolant Thru, 135 Deg, 2 Flute, TiAlN Tip
Guhring 29/64" Solid Carbide Drill 25xD Coolant Thru, 135 Deg, 2 Flute, TiAlN Tip
Regular price
$445.00 USD
Regular price
$0.00 USD
Sale price
$445.00 USD
Unit price
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
Guhring 29/64" Solid Carbide Drill 25xD Coolant Thru, 135 Deg, 2FL, TiAlN Tip
PRODUCT DESCRIPTION
| Description | SC Drill; 29/64" Dia. x 14 mm Shank Dia. x 386 mm OAL x 337 mm LCF ; 135 Degrees ; 25xD ; TiAlN ; Series 6512 |
|---|---|
| Body Material | Carbide |
| Brand | Guhring |
| Coating | TiAlN |
| Connection Diameter Machine Side Dconms | 14 mm |
| Coolant Supply Property CSP | Coolant Thru |
| Cutting Direction Hand | Right-Hand |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.4531" |
| Drill Bit Size Cutting Diameter DC | 29/64" |
| Drill Bit Size Cutting Diameter DC Inch | 29/64" |
| Flute Count Nof | 2 |
| Flute Helix Angle Fha | CW |
| Length Chip Flute LCF | 337 mm |
| Length Group | 25xD |
| Measurement Type | Inch |
| Overall Length Oal | 386 mm |
| Point Angle Sig | 135 Degrees |
| Serieslist | 6512 |
| Shape | Solid Carbide |
| Tool Type | Carbide Drill |
