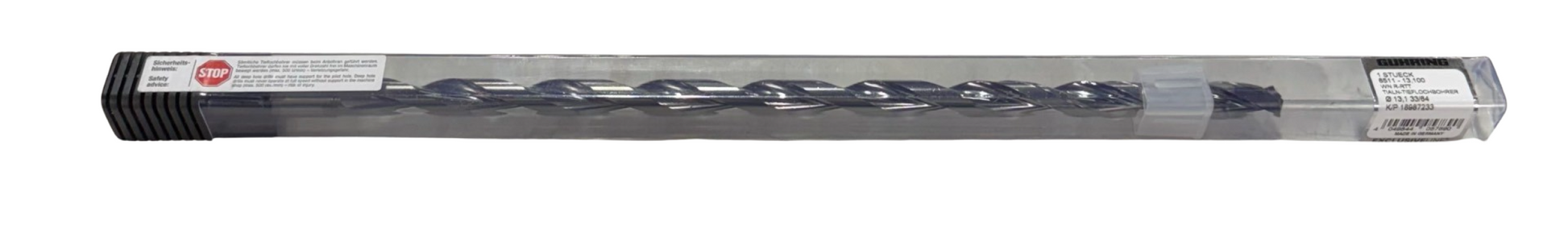

Guhring 33/64" Solid Carbide Drill 20xD Coolant Thru 2 Flute TiAlN Tipped 135 Deg
Guhring 33/64" Solid Carbide Drill 20xD Coolant Thru 2 Flute TiAlN Tipped 135 Deg
Regular price
$350.99 USD
Regular price
$0.00 USD
Sale price
$350.99 USD
Unit price
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
Guhring 33/64" Solid Carbide Drill 20xD Coolant Thru 2 Flute TiAlN Tip 135 Deg
PRODUCT DESCRIPTION
| Description | Solid Carbide Drill; 33/64" Dia. x 14 mm Shank Dia. x 367 mm OAL x 318 mm LCF ; 135 Degrees ; 20xD ; 2 FL ; TiAlN ; Series 6511 |
|---|---|
| Body Material | Carbide |
| Brand | Guhring |
| Coating | TiAlN |
| Connection Diameter Machine Side Dconms | 14 mm |
| Coolant Supply Property CSP | Coolant Thru |
| Cutting Direction Hand | Right-Hand |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5156" |
| Drill Bit Size Cutting Diameter DC | 33/64" |
| Drill Bit Size Cutting Diameter DC Inch | 33/64" |
| Flute Count Nof | 2 |
| Flute Helix Angle Fha | CW |
| Length Chip Flute LCF | 318 mm |
| Length Group | 20xD |
| Measurement Type | Inch |
| Overall Length Oal | 367 mm |
| Point Angle Sig | 135 Degrees |
| Serieslist | 6511 |
| Shape | Solid Carbide |
| Tool Type | Carbide Drill |
