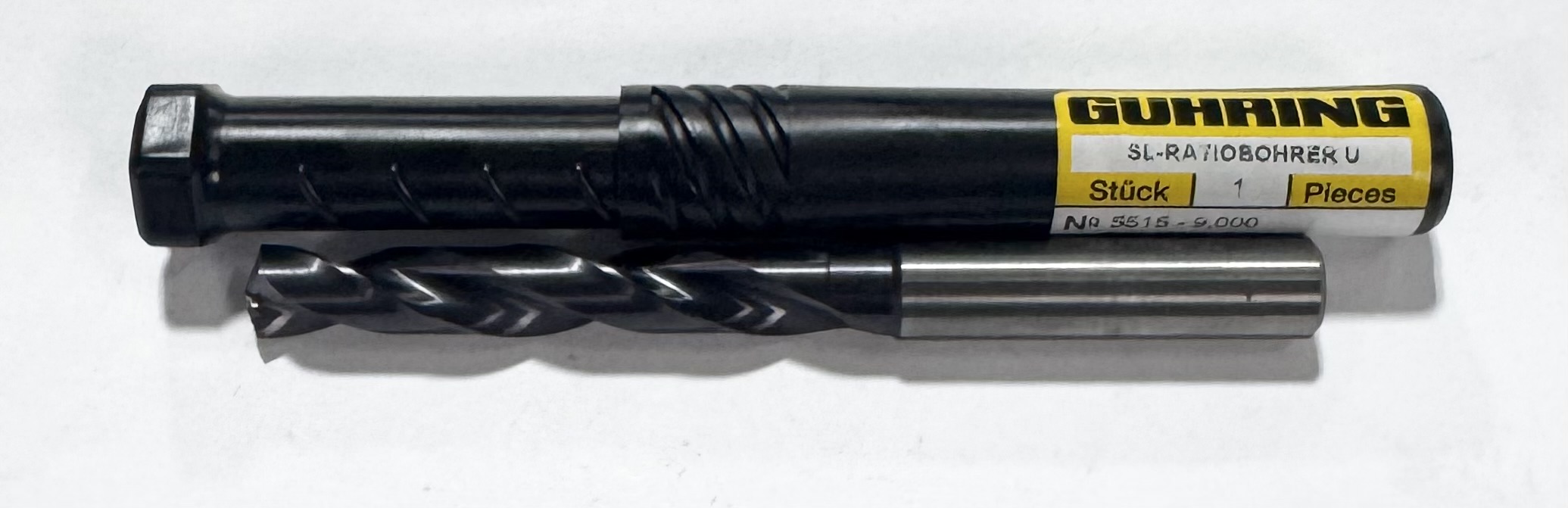

Guhring 9mm Solid Carbide Drill 5xD nano-FIREX 2 Flute 140 Deg Point

PRODUCT DESCRIPTION

Description	SC Drill; 9 mm Dia. x 10 mm Shank Dia. x 103 mm OAL x 61 mm LCF ; 140 Degrees ; 5xD ; TiAlN ; Series 5515
Body Material	Carbide
Brand	Guhring
Coating	nano-FIREX
Connection Diameter Machine Side Dconms	10 mm
Coolant Supply Property CSP	External
Cutting Direction Hand	Right-Hand
Cutting Edge Material	Carbide
Decimal Equivalent	0.3543"
Drill Bit Size Cutting Diameter DC	9 mm
Drill Bit Size Cutting Diameter DC Metric	9 mm
Flute Count Nof	2
Flute Helix Angle Fha	30 Degrees
Length Chip Flute LCF	61 mm
Length Group	5xD
Measurement Type	Metric
Overall Length Oal	103 mm
Point Angle Sig	140 Degrees
Serieslist	5515
Shank Type	Round
Tool Type	Carbide Drill
Usable Length Lu	47.5 mm
