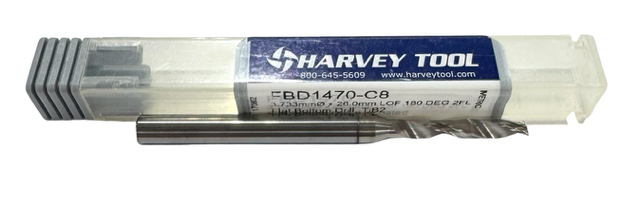

Harvey Tool 3.733mm Solid Carbide Drill 5xD TiB2 Coated 180° Point
Harvey Tool 3.733mm Solid Carbide Drill 5xD TiB2 Coated 180° Point
Regular price
$31.99 USD
Regular price
$0.00 USD
Sale price
$31.99 USD
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $25 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $25.
Quantity
Low stock: 4 left
Couldn't load pickup availability
Harvey Tool 3.733mm Solid Carbide Drill 5xD TiB2 Coated 180° Point
PRODUCT DESCRIPTION
| Description | SC Drill; 3.733 mm Dia. x 6 mm Shank Dia. x 75 mm OAL x 26 mm LCF ; 180 Degrees ; 5xD ; Helical Flute ; TiB2 |
|---|---|
| Body Material | Carbide |
| Brand | Harvey Tool |
| Coating | TiB2 |
| Connection Diameter Machine Side Dconms | 6 mm |
| Cutting Direction Hand | Right-Hand |
| Cutting Edge Material | Carbide |
| Drill Bit Size Cutting Diameter DC | 3.733 mm |
| Drill Bit Size Cutting Diameter DC Metric | 3.733 mm |
| Flute Count Nof | 2 |
| Flute Helix Angle Fha | 22 Degrees |
| Flute Type | Helical |
| Functional Length LF | 26 mm |
| Length Chip Flute LCF | 26 mm |
| Length Group | 5xD |
| Measurement Type | Metric |
| Number Of Teeth | 2 |
| Overall Length Oal | 75 mm |
| Point Angle Sig | 180 Degrees |
| Shank Type | Round |
| Shape | High Performance |
| Tool Type | Miniature |
| Usable Length Lu | 26 mm |
