Low stock: 3 left

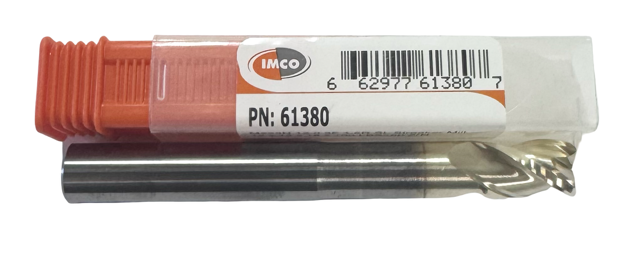

IMCO 12mm Carbide End Mill 3 Flute Reduced Neck 1.5mm Radius ZrN Coated

PRODUCT DESCRIPTION

Description	BN End Mill; 0.472" Dia. x 0.7087" LOC x 0.472" Shank Dia. x 3.937" OAL ; 3 FL ; Carbide ; ZrN
Body Material	Carbide
Brand	Imco
Coating	ZrN
Connection Diameter Machine Side Dconms	12 mm
Coolant Supply Property CSP	External
Corner Radius Re	1.5 mm
Cutting Diameter DC	12 mm
Cutting Edge Material	Carbide
Decimal Equivalent	0.4724"
Depth Of Cut Maximum Apmx	18 mm
End Shape	Corner Radius
Flute Count Nof	3
Flute Helix Angle Fha	37 Degrees
Grade	IM108 ZrN
Measurement Type	Metric
Overall Length Oal	100 mm
Serieslist	M223N-CR
Trade Name	Streaker
Usable Length Lu	48 mm
