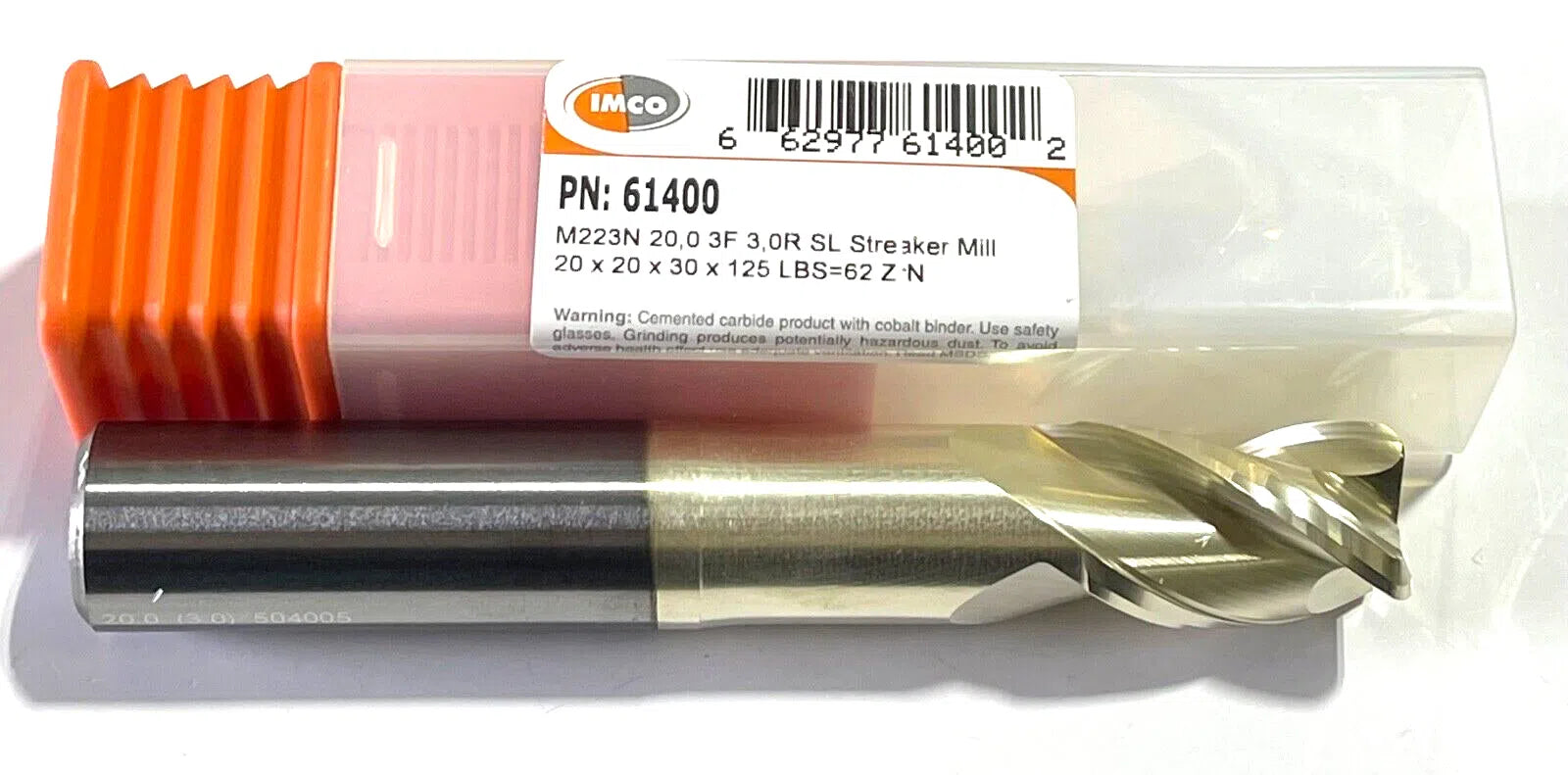

IMCO 20mm Carbide End Mill ZrN Coating 3mm Radius 3 Flute LBS=62 USA Made
IMCO 20mm Carbide End Mill ZrN Coating 3mm Radius 3 Flute LBS=62 USA Made
Regular price
$57.87 USD
Regular price
$0.00 USD
Sale price
$57.87 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
IMCO
USA MADE
SOLID CARBIDE STREAKER MILL
| Cutting Diameter (DC) | 20 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Usable Length (LU) | 60 mm |
| Depth of Cut Maximum (APMX) | 30 mm | Corner Radius (RE) | 3 mm |
| Overall Length (OAL) | 125 mm | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.7874″ |
| Coating | ZrN | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | M223N-CR |
| Flute Helix Angle (FHA) | 37 Degrees |
