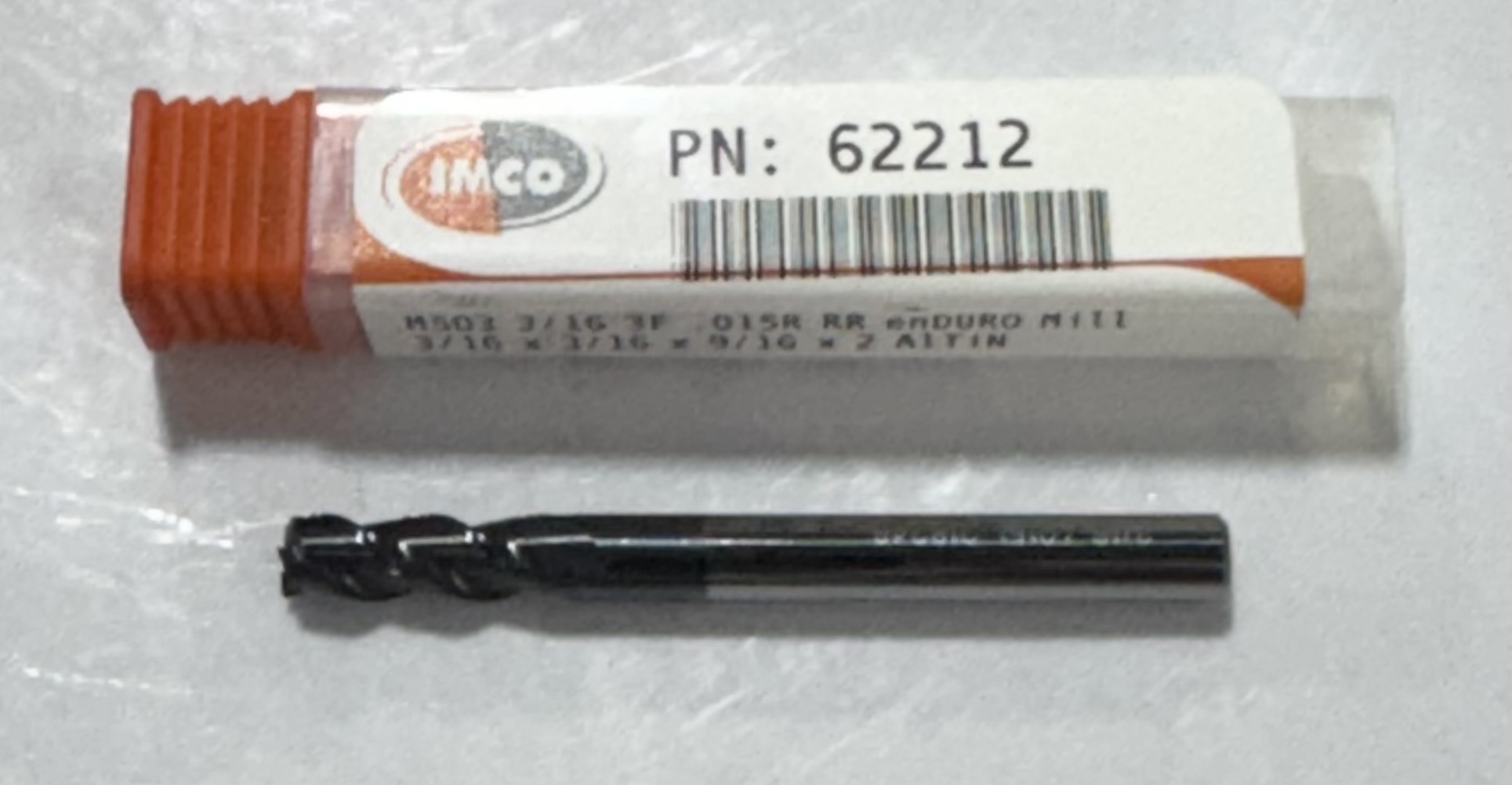

Imco 3/16" Carbide End Mill 3 Flute .015" Radius AlTiN Coated enDURO Mill

PRODUCT DESCRIPTION

Description	Corner Radius End Mill; 0.188" Dia. x 9/16" LOC x 0.188" Shank Dia. x 2" OAL ; 3 FL ; Carbide ; AlTiN ; Series M503-CR
Body Material	Carbide
Brand	Imco
Coating	AlTiN
Connection Diameter Machine Side Dconms	3/16"
Corner Radius Re	0.015"
Cutting Diameter DC	3/16"
Cutting Edge Material	Carbide
Decimal Equivalent	0.188"
Depth Of Cut Maximum Apmx	9/16"
End Shape	Corner Radius
Flute Count Nof	3
Flute Helix Angle Fha	40 Degrees
Grade	IM106 AlTiN
Length Group	Standard
Measurement Type	Inch
Overall Length Oal	2"
Serieslist	M503-CR
Shank Type	Plain
Tool Type	Single-End|High Performance
