Low stock: 2 left

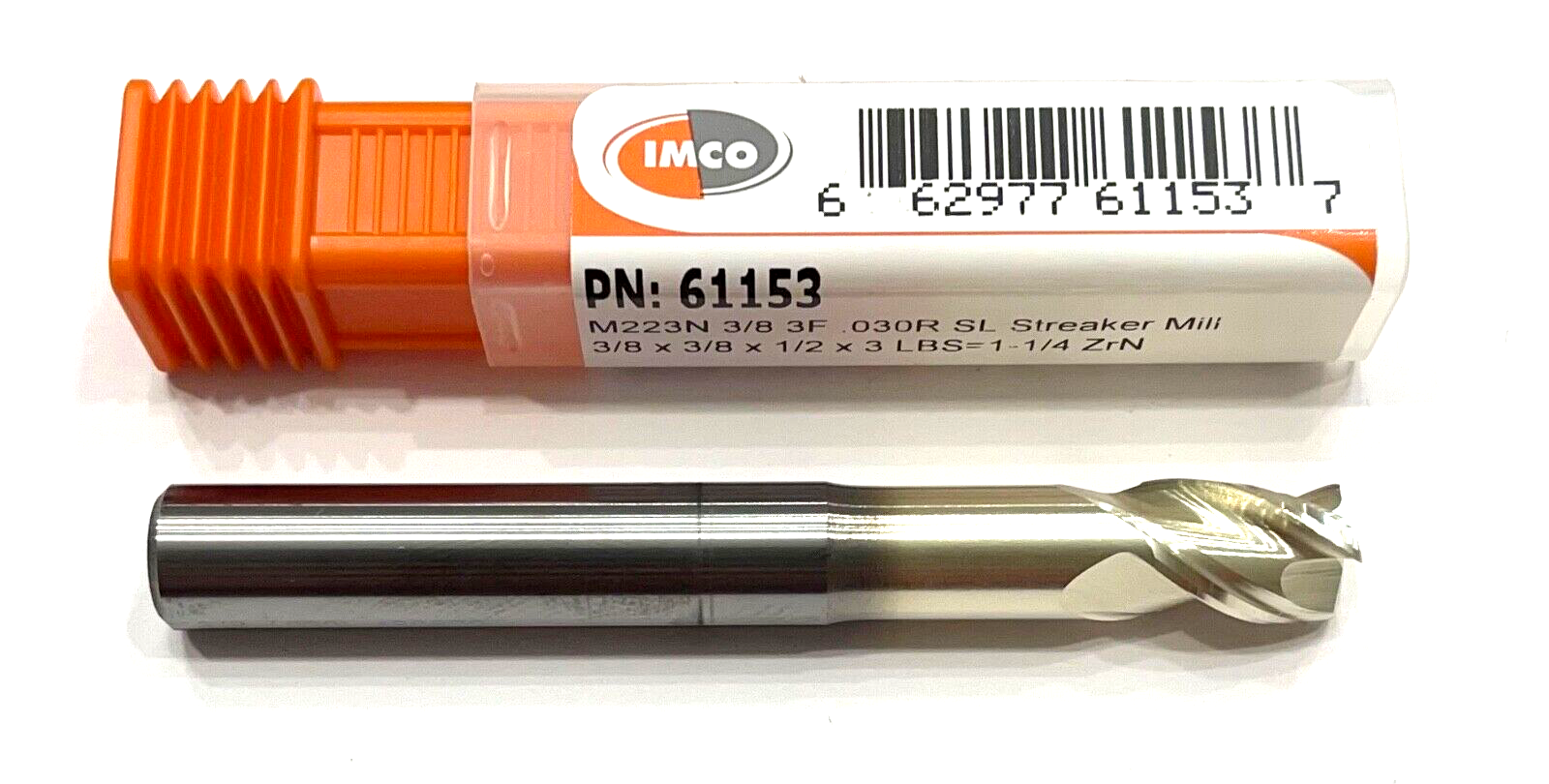

IMCO 3/8" Carbide End Mill ZrN Coating .030 Radius 3 Flute With Neck Relief USA

PRODUCT DESCRIPTION

IMCO

USA MADE

SOLID CARBIDE STREAKER END MILL WITH NECK RELIEF

Cutting Diameter (DC)	3/8″	End Shape	Corner Radius
Connection Diameter Machine Side (DCONMS)	3/8″	Usable Length (LU)	‎1-1/4″
Depth of Cut Maximum (APMX)	1/2″	Corner Radius (RE)	0.03″
Overall Length (OAL)	3″	Coolant Supply Property (CSP)	External
Cutting Edge Material	Carbide	Decimal Equivalent	0.375″
Coating	ZrN	Measurement Type	Inch
Flute Count (NOF)	3	Series/List #	M223N-CR
Flute Helix Angle (FHA)	37 Degrees

Product Features

Remarks

•Designed for machining aluminum•ZrN coated for maximum tool life
