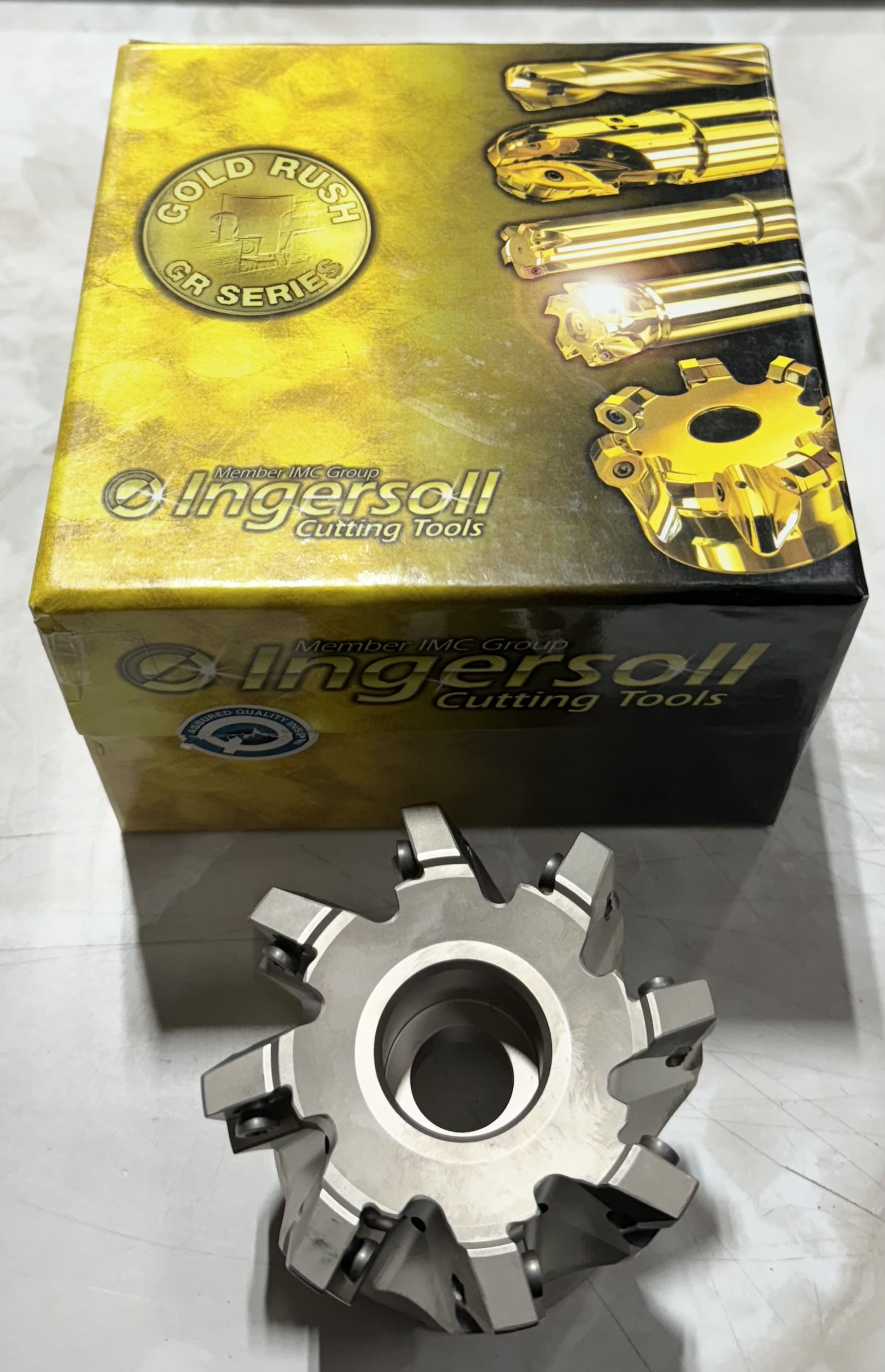

Ingersoll 4" GoldQuad Indexable Hi-Feed Face Mill 3003163
Ingersoll 4" GoldQuad Indexable Hi-Feed Face Mill 3003163
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Out of stock
Couldn't load pickup availability
Ingersoll 4" GoldQuad Indexable Hi-Feed Face Mill 3003163
PRODUCT DESCRIPTION
Part #3003163 Apmx - Depth Of Cut Max.: 0.147. Oal - Overall Length: 2.500. Zeff - Eff. Teeth: 8. Csp - Coolant: Yes. Rmpx - Ramp Angle Max.: 1.20. Kapr - Cutting Edge Angle: 12.0. Step File: . Dcon - Bore Diameter : 1.500. Kww - Keyway: 0.63. Dxf File: . Dcx - Cutting Diameter Max.: 4.000. Dc - Cutting Diameter : 2.769.
- 03.000-7.000â?
- 19mm insert with 4 indexes
- .147" (3.7 mm) Max. depth of cut
- 12 Degree Hi-feed rougher
- Seven different insert edge preparations provide application flexibility
- Extremely free cutting!
- Excellent Hi-Feed performance & economy!
