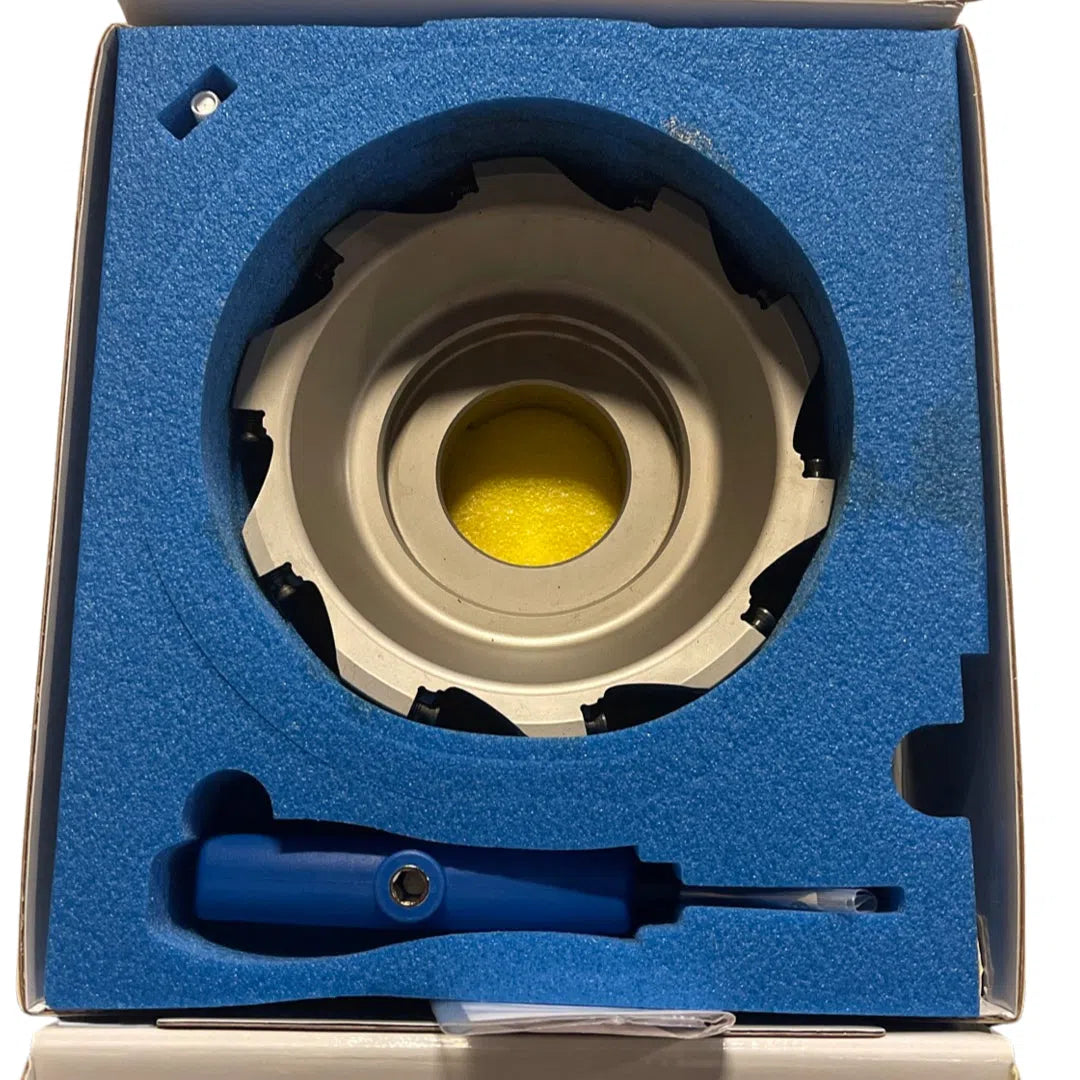

ISCAR 6" Indexable Face Mill HM90 F90A D6.00-10-2.00 HELI2000 Face Mill
ISCAR 6" Indexable Face Mill HM90 F90A D6.00-10-2.00 HELI2000 Face Mill
Regular price
$273.00 USD
Regular price
$0.00 USD
Sale price
$273.00 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Out of stock
Couldn't load pickup availability
ISCAR
INDEXABLE FACE MILL
| Cutting Diameter (DC/DCX) | 6″ | Arbor Style | B |
| Cutting Diameter (DC) | 6″ | Master Insert Identification (MIID) | ADKT 1505PDTR |
| Cutting Diameter Maximum (DCX) | 6″ | Body Material | Steel |
| Cutting Item Count (CICT) | 10 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.56″ | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.38″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 4.13″ | Tool Type | 90° Facemills |
