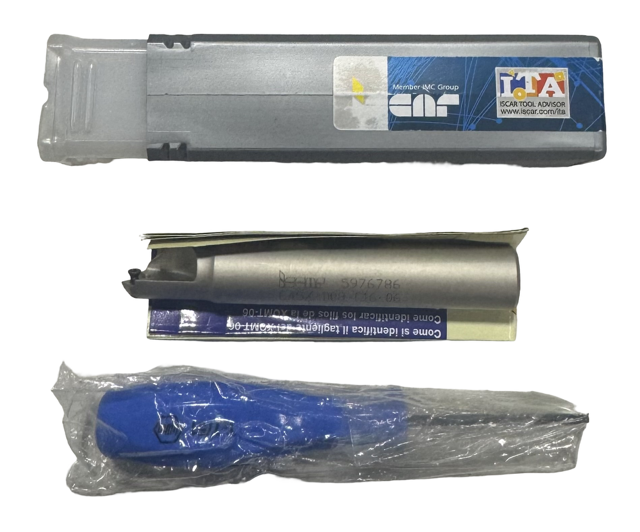

Iscar 8mm Indexable End Mill E45X D08-C16-06

PRODUCT DESCRIPTION

Description	Indexable End Mill; 8 mm Dia. x 4 mm LOC x 16 mm Shank Dia. x 100 mm OAL ; Round Shank ; 45 Degrees
Body Material	Steel
Brand	Iscar
Connection Code Machine Side CCMS	Cylindrical
Connection Diameter Machine Side Dconms	16 mm
Cutting Diameter DC	8 mm
Cutting Diameter DCDCX	8 mm
Cutting Diameter Maximum DCX	16.1 mm
Cutting Direction Hand	Right-Hand
Cutting Item Count Cict	1
Depth Of Cut Maximum Apmx	4 mm
Functional Length LF	100 mm
Head Length LH	25 mm
Master Insert Identification Miid	SOMT 06020
Measurement Type	Metric
Overall Length Oal	100 mm
Shank Type	Round
Tool Cutting Edge Angle Kapr	45 Degrees
Tool Type	Chamfering Endmills
