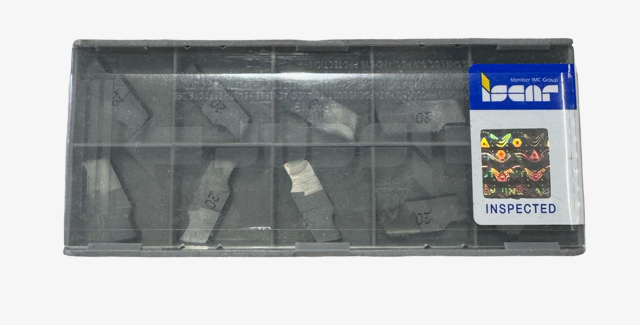

Iscar Carbide Insert GIPI 3.96-0.20 Grade IC20 Grooving Inserts 10 Pack

PRODUCT DESCRIPTION

Description	Grooving Insert; 0.156" CW ; Carbide ; IC20 ; Uncoated
Body Material	Carbide
Brand	Iscar
Chip Breaker Type	PG
Clearance Angle Major An	8 Degrees
Coating	Uncoated
Corner Radius Re	0.2 mm
Cutting Direction Hand	Right-Hand
Cutting Edge Length L	0.401"
Cutting Edge Material	Carbide
Cutting Position	External
Cutting Width CW	3.96 mm
Feed	0.13 mm/rev
Grade	IC20
Height	0.344"
Measurement Type	Metric
Minimum Bore Diameter Dmin	20 mm
Shape	90° Rectangular
Thread Pitch Maximum TPX	0.344"
Threads Per Inch Tpi	8
Tool Type	Groove-Turn Precision Inserts
