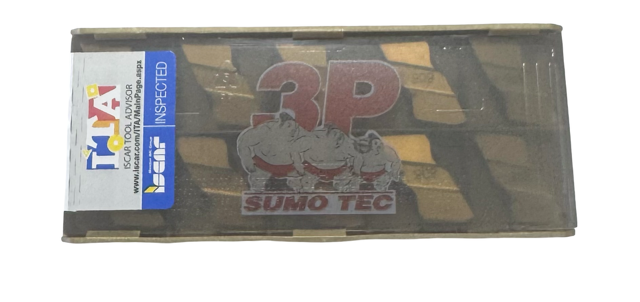

Iscar Carbide Insert ING3088L Grade IC808 Parting Off Inserts 10 Pack

PRODUCT DESCRIPTION

Description	Parting Off Insert; 0.088" CW x 0.89" Length x 0.341" Thickness x 0.0075" Corner Radius ; Left Hand ; Carbide ; TiAlN+AlTiN+TiN ; IC808
Angle	12 Degrees
Body Material	Carbide
Brand	Iscar
Coating	TiAlN|AlTiN|TiN
Corner Radius Re	0.19 mm
Cutting Depth Maximum CDX	2.39 mm
Cutting Direction Hand	Left Hand
Cutting Edge Material	Carbide
Cutting Width CW	2.24 mm
Grade	IC808
Insert Length Insl	22.6 mm
Insert Rake Angle Gan	0 Degrees
Insert Thickness S	8.65 mm
Insert Width W1	0.195"
Measurement Type	Metric
Overall Length Oal	22.86 mm
Shape	90° Rectangular
Tool Type	Groove-Turn Precision Inserts
