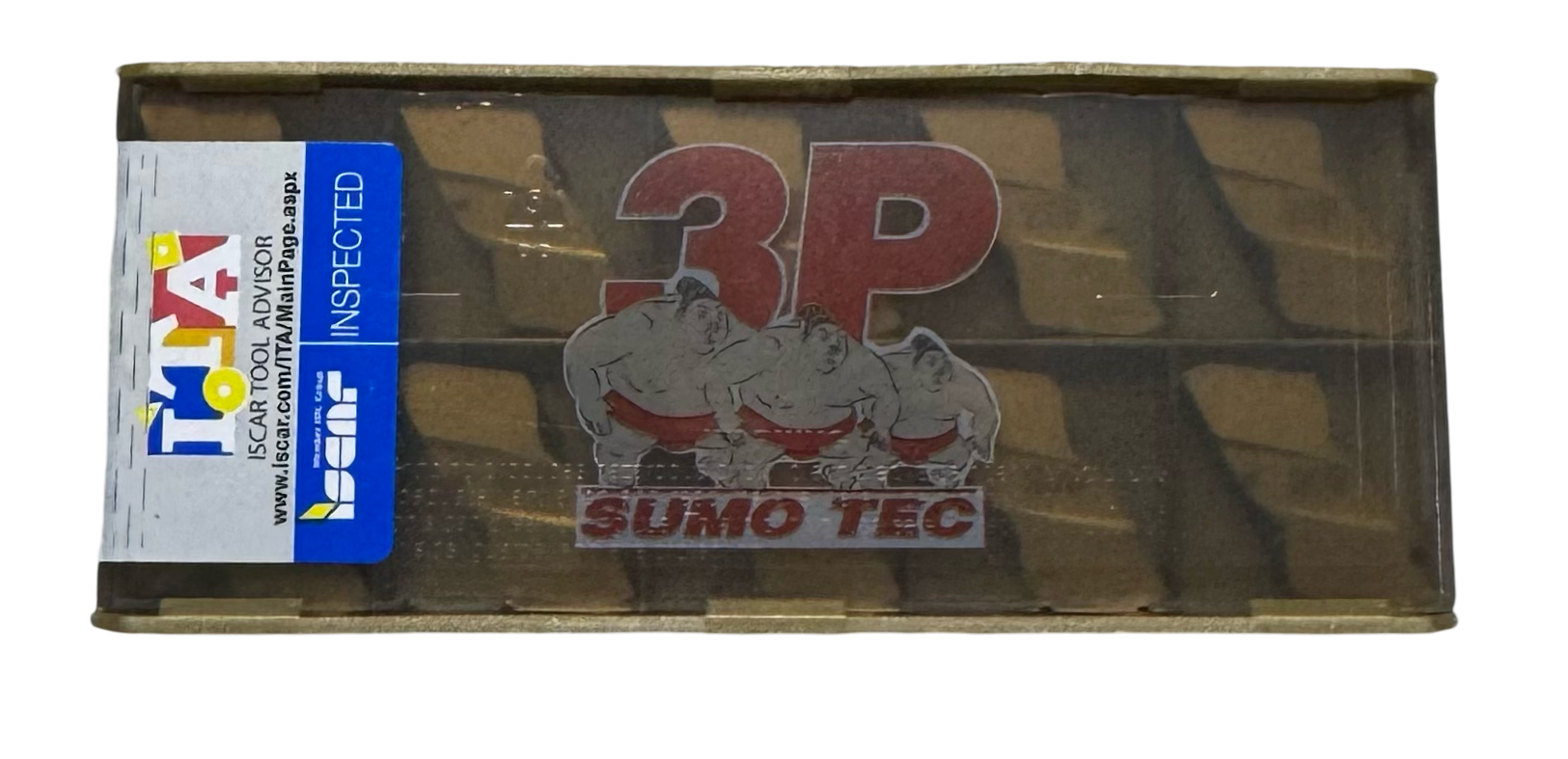

ISCAR Carbide Insert ING3142L Grade IC808 Groove Turn Parting Off Inserts 10pk

PRODUCT DESCRIPTION

Cutting Width (CW)	0.142″	Application	| Ext. Grooving | Int. Grooving |
Corner Radius (RE)	0.0125″	Applicable Material	| Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
Corner Radius Tolerance (+/-) (RETOL)	0.0025″	Max. Grooving Feed (fg(max))	0.0059 ″/rev
Insert Thickness (S)	0.341″	Min. Grooving Feed (fg(min))	0.0035 ″/rev
Overall Length (OAL)	0.9″	Insert Rake Angle (GAN)	0 Degrees
Insert Length (INSL)	0.89″	Tool Type	Groove-Turn Precision Inserts
Cutting Depth Maximum (CDX)	0.15″	Angle	12 Degrees
Cutting Edge Material	Carbide	Measurement Type	Inch
Coating	TiAlN+AlTiN+TiN	Body Material	Carbide
Grade	IC808	Cutting Width Tolerance (+/-) (CWTOL)	0.001″
Shape	90° Rectangular	Insert Width (W1)	0.195″
Cutting Direction (HAND)	Left Hand
