Low stock: 1 left

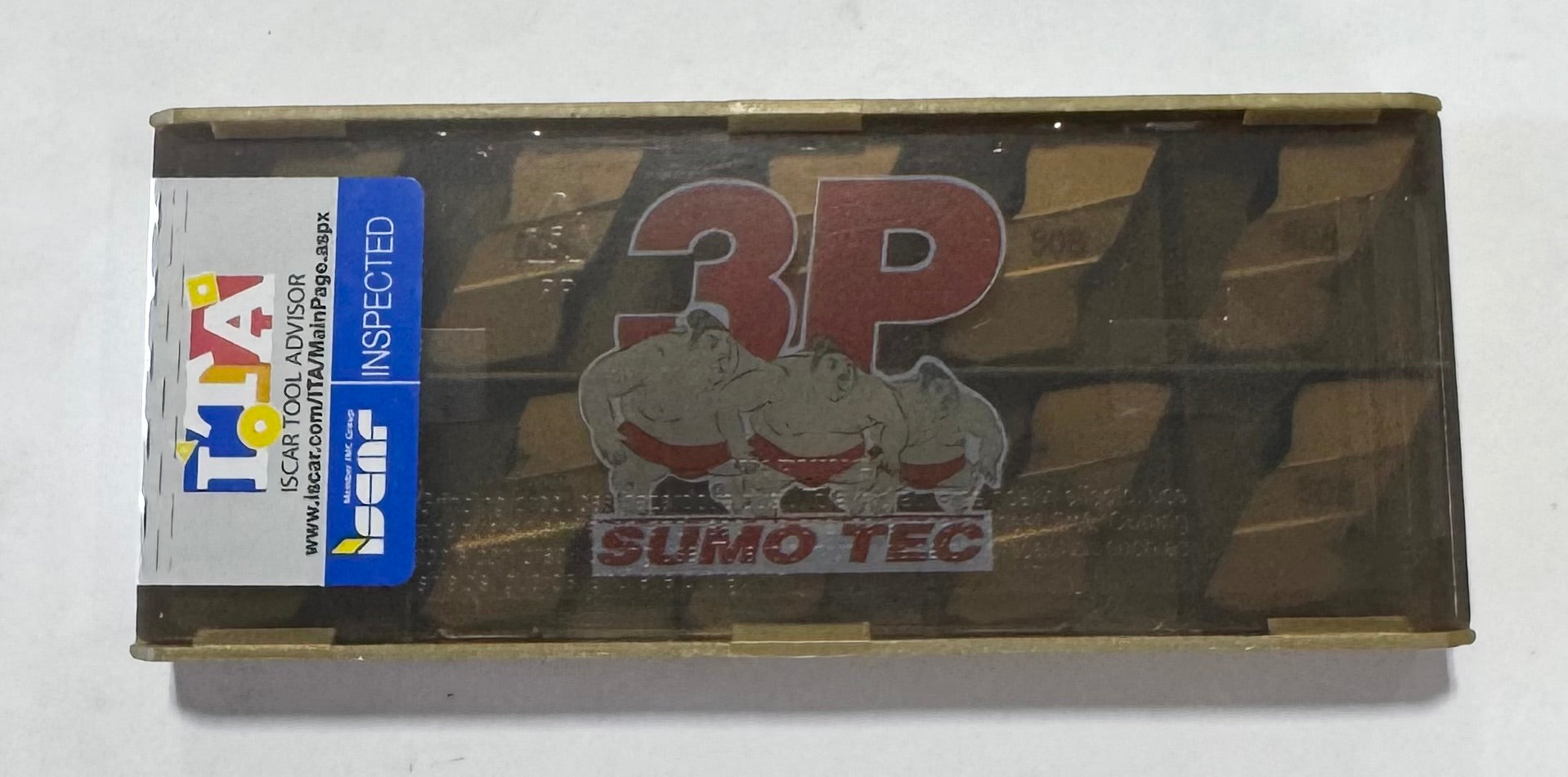

Iscar Carbide Insert ING3185R Grade IC808 Parting Off Inserts 10 Pack

PRODUCT DESCRIPTION

Description	Parting Off Insert; 0.185" CW x 0.89" Length x 0.341" Thickness x 0.0224" Corner Radius ; Right Hand ; Carbide ; TiAlN+AlTiN+TiN ; IC808
Angle	12 Degrees
Body Material	Carbide
Brand	Iscar
Coating	TiAlN|AlTiN|TiN
Corner Radius Re	0.57 mm
Cutting Depth Maximum CDX	3.81 mm
Cutting Direction Hand	Right-Hand
Cutting Edge Material	Carbide
Cutting Width CW	4.7 mm
Grade	IC808
Insert Length Insl	22.6 mm
Insert Rake Angle Gan	0 Degrees
Insert Thickness S	8.65 mm
Insert Width W1	0.195"
Measurement Type	Metric
Overall Length Oal	22.86 mm
Shape	90° Rectangular
Tool Type	Groove-Turn Precision Inserts
