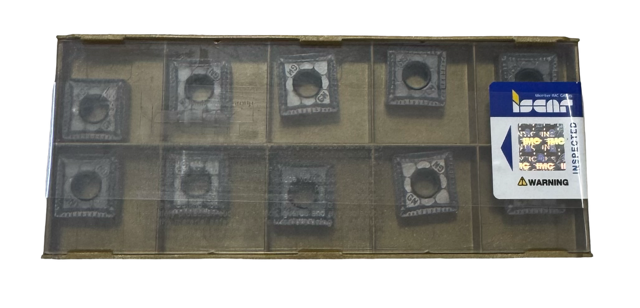

Iscar Carbide Insert SNMG 543-GN Grade IC830 Turning Inserts 10 Pack

PRODUCT DESCRIPTION

Description	Turning Insert; Square ; 5/8" Length x 5/8" IC x 0.0472" Corner Radius ; IC830 ; Carbide ; AlTiN+TiN
Body Material	Carbide
Brand	Iscar
Chip Breaker Type	GN
Coating	AlTiN|TiN
Corner Radius Re	0.0472"
Cutting Edge Length L	5/8"
Cutting Edge Material	Carbide
Depth Of Cut Maximum Apmx	0.276"
Fixing Hole Diameter D1	1/4"
Grade	IC830
Inscribed Circle Diameter Ic	5/8"
Insert Included Angle Epsr	60 Degrees
Insert Size	543
Insert Style	SNMG
Insert Thickness S	1/4"
Measurement Type	Inch
Number Of Cutting Edges	3
Quantity	10
Shape	Square
Tool Type	Turn Negative Inserts
