Low stock: 1 left

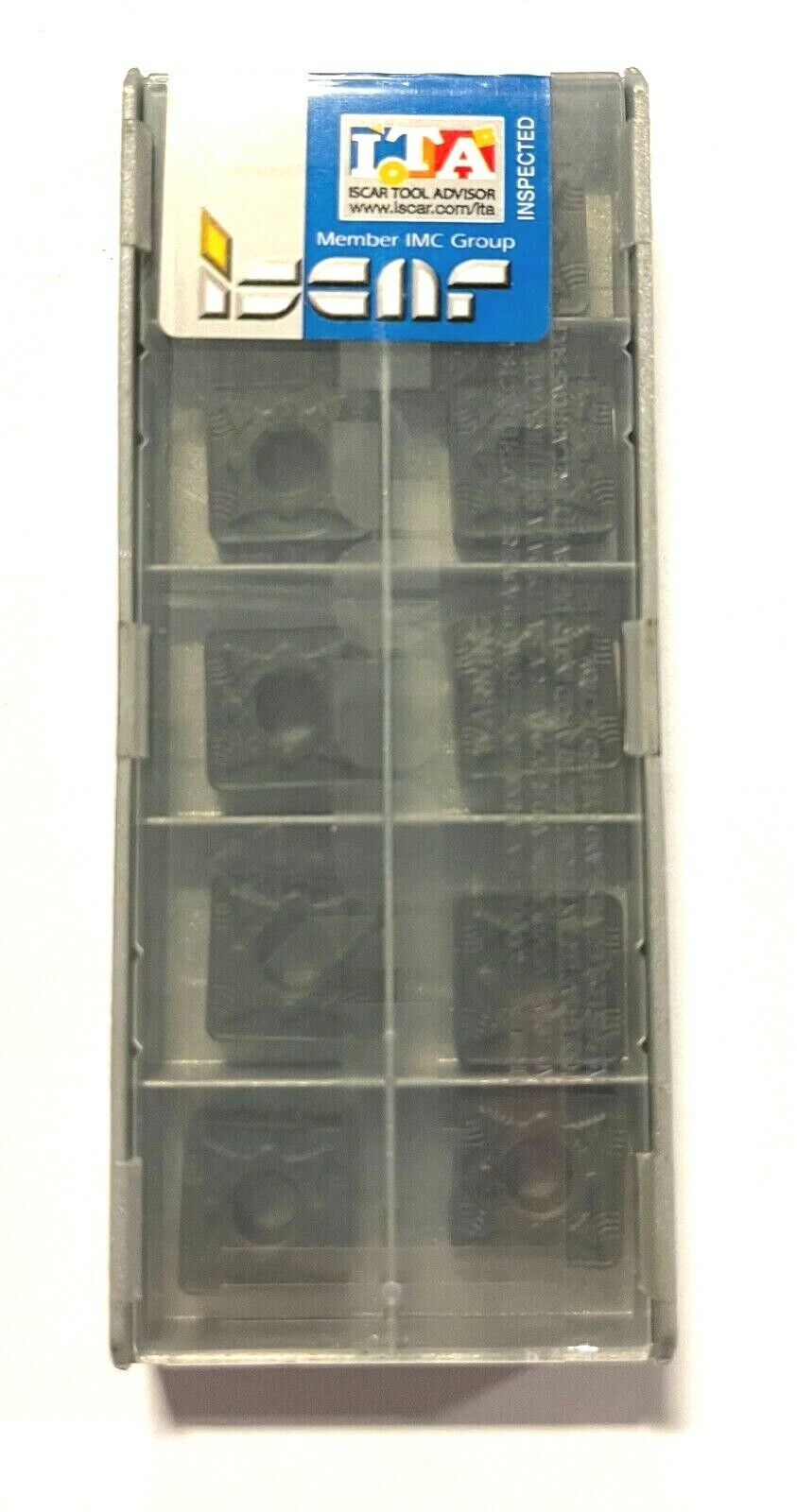

Iscar Carbide Inserts SNMG 433-NR Grade IC428 Indexable Turning Inserts 10 Pack

PRODUCT DESCRIPTION

ISCAR

CARBIDE TURNING INSERTS

10 PACK

Applicable Material	| Steel | Cast Iron | Hard Materials |	Tool Type	Turn Negative Inserts
Application	| Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Insert | Int. Square 75° Approach |	Fixing Hole Diameter (D1)	0.203″
Insert Style	SNMG	Min D.O.C.	0.079″
Corner Radius (RE)	0.0472″	Depth of Cut Maximum (APMX)	0.197″
Insert Size	433	Min. Turning Feed (ft(min))	0.0118 ″/rev
Cutting Edge Length (L)	1/2″	Max. Turning Feed (ft(max))	0.0276 ″/rev
Insert Thickness (S)	0.187″	Chip Breaker Type	NR
Inscribed Circle Diameter (IC)	1/2″	Measurement Type	Inch
Cutting Edge Material	Carbide	Shape	90° Square
Coating	TiC+Al2O3	Body Material	Carbide
Grade	IC428
