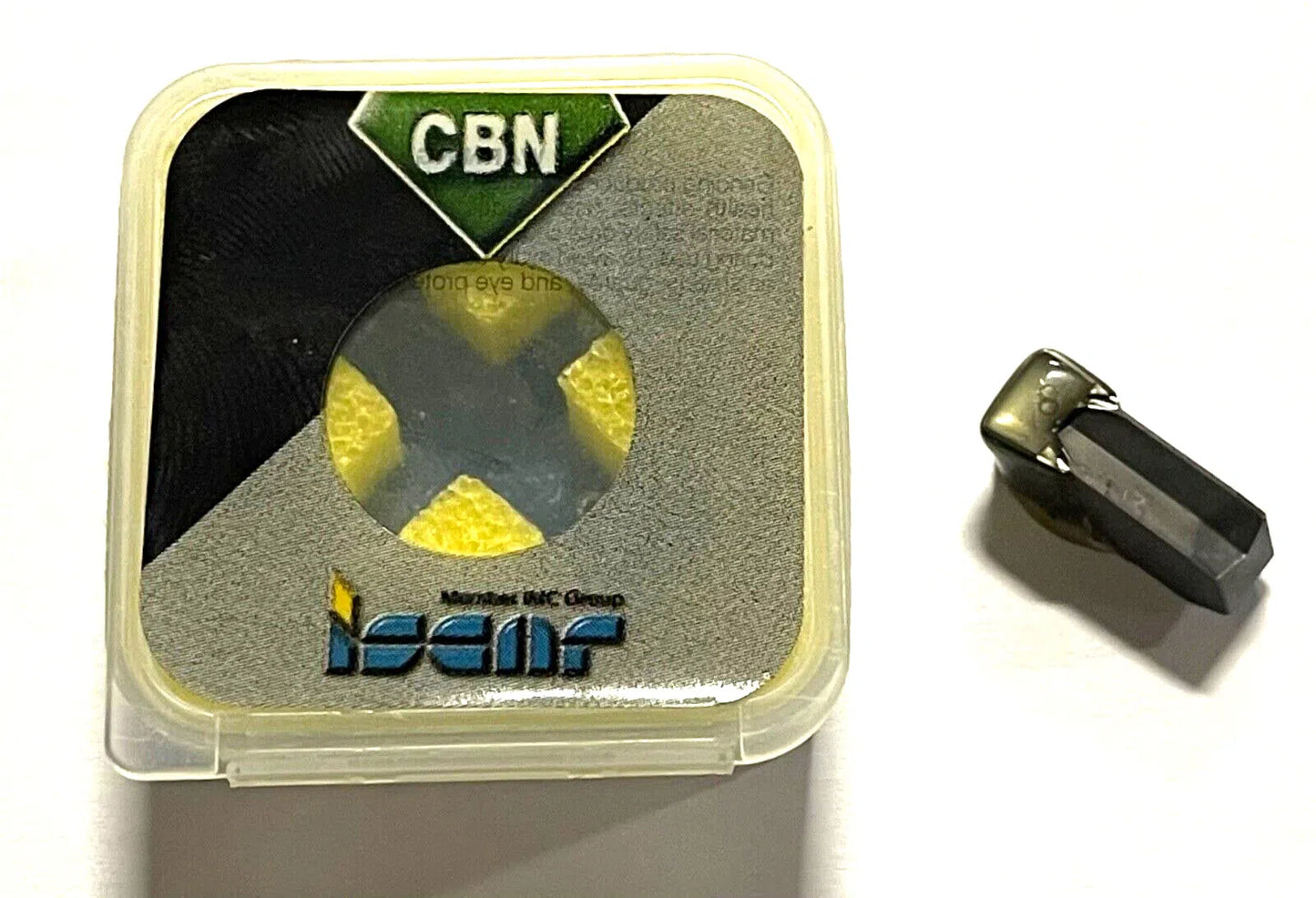

Iscar CBN Insert GITM 6.00K-0.40 IB50 Carbide Groove Turn Insert 6402561
Iscar CBN Insert GITM 6.00K-0.40 IB50 Carbide Groove Turn Insert 6402561
Regular price
$22.93 USD
Regular price
$0.00 USD
Sale price
$22.93 USD
Unit price
/
per
Shipping calculated at checkout.
27 in stock
Couldn't load pickup availability
ISCAR
CBN GROOVE TURN INSERT
| Cutting Width (CW) | 0.236″ | Cutting Edge Material | PCBN |
| Corner Radius (RE) | 0.016″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Groove Turn & Parting Inserts | Int. Groove & Turn | Int. Grooving | |
| Clearance Angle Major (AN) | 7 Degrees | Applicable Material | | Cast Iron | Hard Materials | |
| Insert Length (INSL) | 0.591″ | Chip Breaker Type | K |
| Minimum Bore Diameter (DMIN) | 2.756″ | Cutting Position | External |
| Feed | 0.0059 inch/rev | Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | IB50 | Tool Type | Groove Turn Ultra hard Inserts |
| Shape | 90° Rectangular | Body Material | Carbide |
