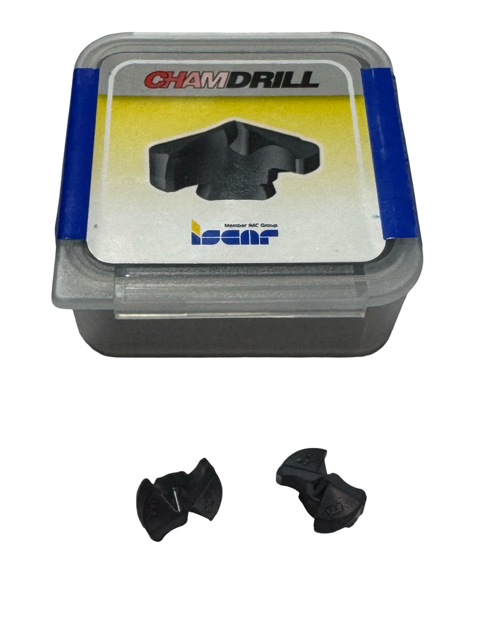

Iscar IDI0504SK IC908 Carbide Drill Insert 2 Pack

PRODUCT DESCRIPTION

Tip Material	Solid Carbide
Manufacturer Grade	IC908
Material Grade	Submicron
Series	IDI-SG
Coating Process	PVD
Insert Geometry	SG
Insert Seat Size	18
Functional Length (Decimal Inch)	0.1960
Primary Workpiece Material	Steel, Stainless Steel, Cast Iron, Superalloys & Titanium, Hard Material
Primary Workpiece Material Code	P, M, K, S, H
Standards	ISO 13399
Height (Decimal Inch)	0.3270
Overall Length/Projection (Decimal Inch)	0.3270
Web Thinning	Web Thinned
Drill Point Angle	140
Flute Type	Spiral
Insert Holding Method	Twist
ISO Number	IDI 182-SG
Coolant Through	No
Point Type	Thinned
Spiral Type	Slow Spiral
Style	General Purpose
Coating Classification	PVD
Applications	Drilling
Coating/Finish	TiAlN
Included Angle Degree	140
Number Of Flutes	2
