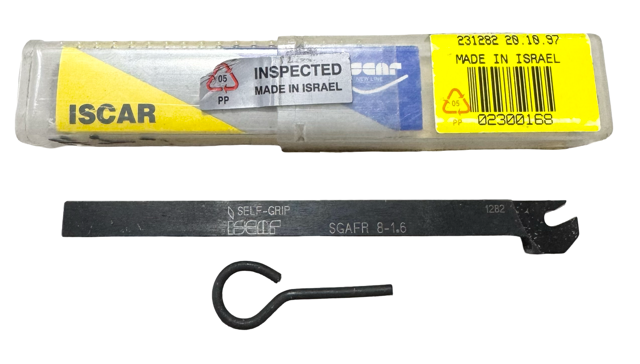

Iscar SGAFR 8-1.6 Indexable Grooving Tool Holder 8mm x 8mm Shank

PRODUCT DESCRIPTION

Toolholder Type: External Grooving	Hand of Holder: Right Hand
Minimum Groove Width (Decimal Inch): 0.0630	Minimum Groove Width (mm): 1.60
Maximum Groove Width (mm): 1.60	Toolholder Style: SGAF
Maximum Groove Width (Decimal Inch): 0.0630	Insert Holding Method: Wedge
Insert Compatibility: GF.. 1.6	Shank Height (mm): 8.00
Shank Height (Decimal Inch): 0.3150	Series: Self-Grip
Overall Length (mm): 120	Overall Length (Decimal Inch): 4.7244

Indexable Grooving Toolholder: SGAFR 8-1.6, External, Right Hand, 26 mm Max Workpiece Dia
