Low stock: 1 left

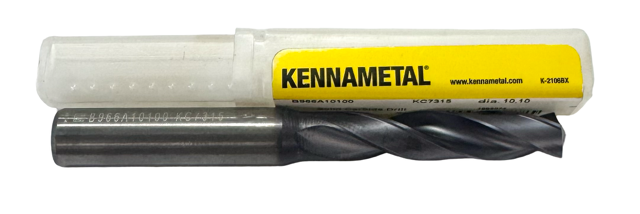

Kennametal 10.10mm Solid Carbide Drill Screw Machine Length TiAlN 2 Flute

PRODUCT DESCRIPTION

Specifications

Drill Bit Size (mm)	10.10
Drill Bit Size (Decimal Inch)	0.3976
Tool Material	Solid Carbide
Cutting Direction	Right Hand
Coating/Finish	TiAlN

Number Of Flutes	2
Spiral Type	Regular
Flute Type	Regular Spiral
Flute Length (mm)	55.00
Drill Point Angle	140
Coolant Through	No
Point Type	Standard
Primary Workpiece Material	Cast Iron; Steel
Shank Type	Straight
Shank Diameter (Decimal Inch)	0.4724
Overall Length (mm)	102.00
Overall Length (Decimal Inch)	4.0157
Shank Diameter (mm)	12.00
Series	B966A
Web Thinning	Web-Thinned
Web Configuration	Parallel
Proprietary Coating/Finish	TiAlN
Maximum Drilling Depth (mm)	40.00
Shank Length (Decimal Inch)	1.7717
Shank Length (mm)	45.00
Drill Point Length (mm)	1.70
Drill Bit Diameter Tolerance	+0.007 to +0.025 mm
Drill Bit Grade	Dynapoint High Performance
Drill Bit Size Range (Decimal Inch)	0.3500 to 0.4000
Drill Bit Size Range (mm)	9.50 - 11.00
Specification Number	DIN 6537K
Specification Designation	DIN
Material Grade	KC7315
