Michigan Wholesale Tool Supply

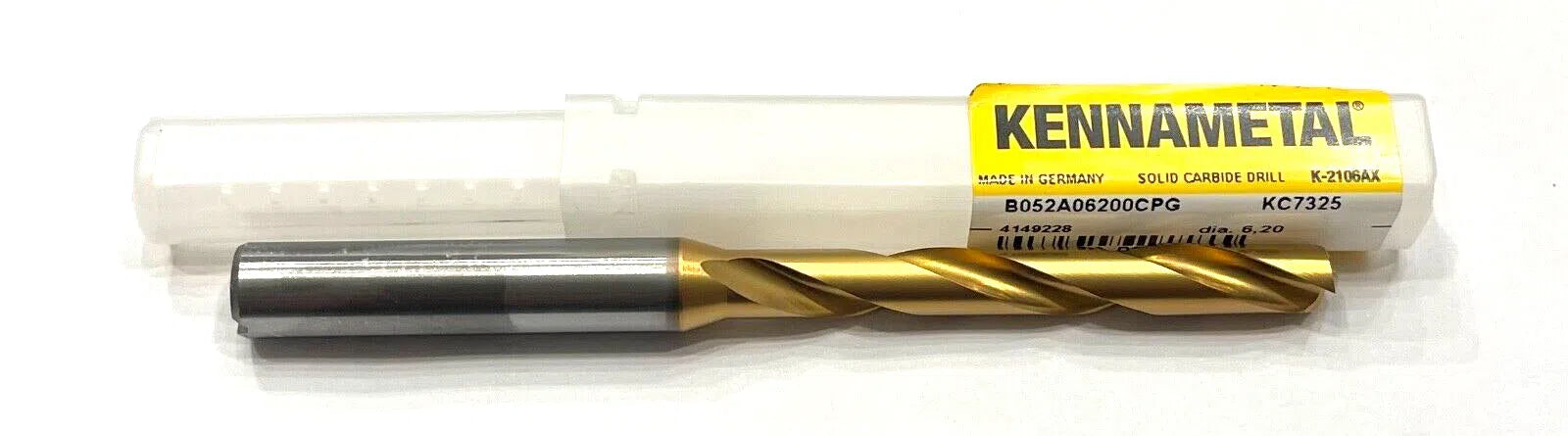

Kennametal 6.2mm Solid Carbide Drill 5xD Tin Coating Coolant Thru 2FL 140° Point
Kennametal 6.2mm Solid Carbide Drill 5xD Tin Coating Coolant Thru 2FL 140° Point
Regular price
$16.74 USD
Regular price
$0.00 USD
Sale price
$16.74 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 5 left
Couldn't load pickup availability
KENNAMETAL
SOLID CARBIDE COOLANT THRU DRILL
| Drill Bit Size / Cutting Diameter (DC) | 6.2 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.2 mm | Tool Type | Solid Carbide Drill |
| Length Group | 5xD | Flute Type | Helical |
| Coating | TiN | Grade | KC7325 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Series/List # | GO |
| Coolant Supply Property (CSP) | Coolant Thru | Usable Length (LU) | 43 mm |
| Point Angle (SIG) | 140 Degrees | Length Chip Flute (LCF) | 53 mm |
| Point Length (PL) | 1.04 mm | Overall Length (OAL) | 91 mm |
| Functional Length (LF) | 89.96 mm | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 26 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 36 mm | Body Material | Carbide |
| Shank Type | Round |
