Michigan Wholesale Tool Supply

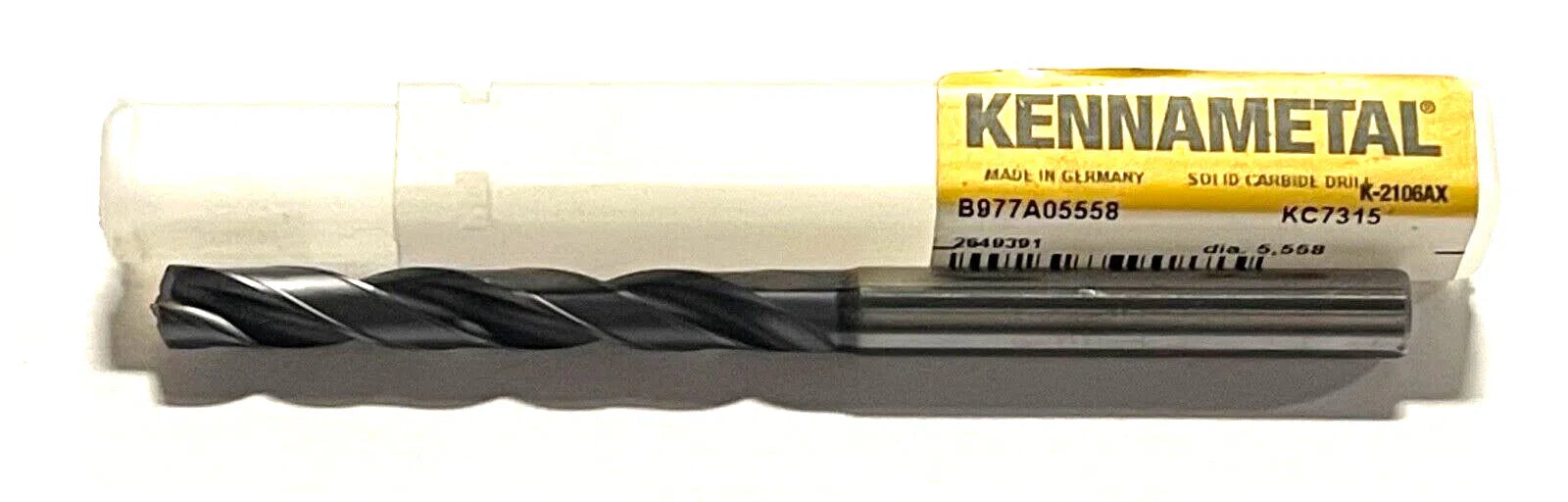

Kennametal 7/32" Solid Carbide Drill 140° TiAlN Coolant Thru High Performance
Kennametal 7/32" Solid Carbide Drill 140° TiAlN Coolant Thru High Performance
Regular price
$16.74 USD
Regular price
$0.00 USD
Sale price
$16.74 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
KENNAMETAL
HIGH PERFORMANCE SOLID CARBIDE DRILL
| Drill Bit Size (Decimal Inch) | 0.2188 |
| Drill Bit Size (Inch) | 7/32 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiAlN |
| Drill Point Angle (Degrees) | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (Decimal Inch) | 3.2283 |
| Flute Length (Decimal Inch) | 1.7323 |
| Shank Diameter (mm) | 6.00 |
| Maximum Drilling Depth (Decimal Inch) | 1.3780 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Point Length (mm) | 0.94 |
| Drill Point Length (Decimal Inch) | 0.0370 |
| Drill Bit Diameter Tolerance | +0.004 to +0.016 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Specification Number | DIN 6537L |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Specification Designation | DIN |
