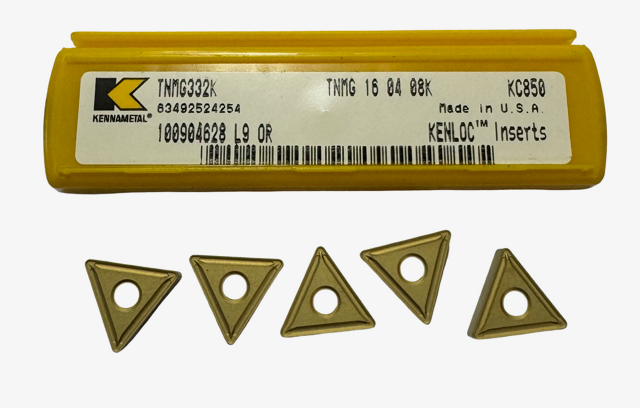

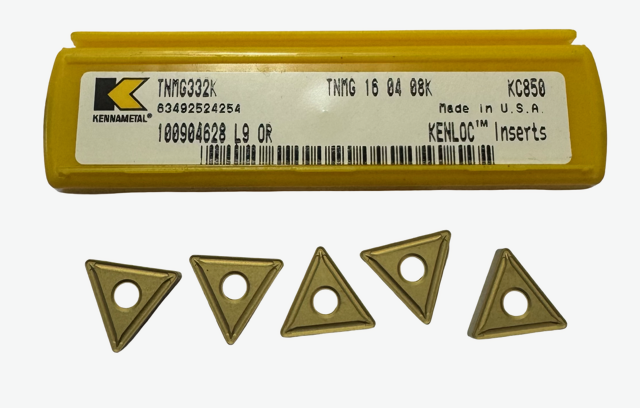

Kennametal Carbide Insert TNMG332K Grade KC850 Turning Inserts 5 Pack

PRODUCT DESCRIPTION

Insert Style	TNMG
ISO Size Code	160408
ANSI Size Code	332
Insert Shape	T - Triangle
Included Angle	60

Inscribed Circle (Decimal Inch)	0.3750
Inscribed Circle (Inch)	3/8
Corner Radius (Inch)	1/32
Corner Radius (Decimal Inch)	0.0312
Insert Material	Carbide
Manufacturer Grade	KC850
Coating/Finish	TiCN; TiN; TiC
Relief Angle	0
Insert Thickness (Decimal Inch)	0.1875
Insert Thickness (Inch)	3/16
Insert Hand	Neutral
Series	KENLOC
Grade Characteristics	Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness
Side Clearance	Negative
Insert Shape Code	T
