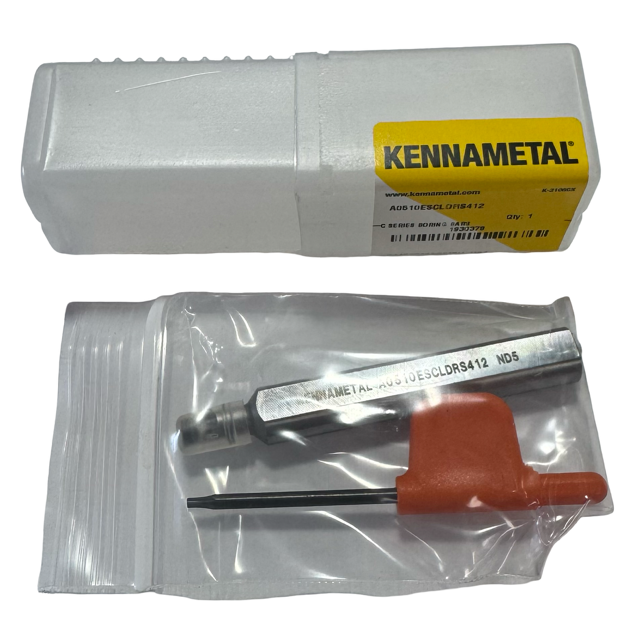

Kennametal Indexable Boring Bar A0510ESCLDRS412, 5.78 mm Min Bore
Kennametal Indexable Boring Bar A0510ESCLDRS412, 5.78 mm Min Bore
Regular price
$51.99 USD
Regular price
$0.00 USD
Sale price
$51.99 USD
Unit price
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 4 left
Couldn't load pickup availability
Kennametal Indexable Boring Bar A0510ESCLDRS412, 5.78 mm Min Bore USA Made
PRODUCT DESCRIPTION
Specifications
| Minimum Bore Diameter (mm) | 5.78 |
| Minimum Bore Diameter (Decimal Inch) | 0.2276 |
| Maximum Bore Depth (mm) | 12.70 |
| Toolholder Style | A-SCLD |
| Tool Material | Steel |
| Insert Compatibility | CD.. |
| Shank Diameter (mm) | 10.00 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 2.7559 |
| Overall Length (mm) | 70.00 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Rake Angle | 5.00 |
| Lead Angle | 5 |
| Insert Inscribed Circle (Inch) | 5/32 |
| Multi-use Tool | No |
| Center to Cutting Edge (mm) | 2.95 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0400 |
| Coolant Hole Diameter (Decimal Inch) | 0.0394 |
| Coolant Hole Diameter (mm) | 1.00 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
