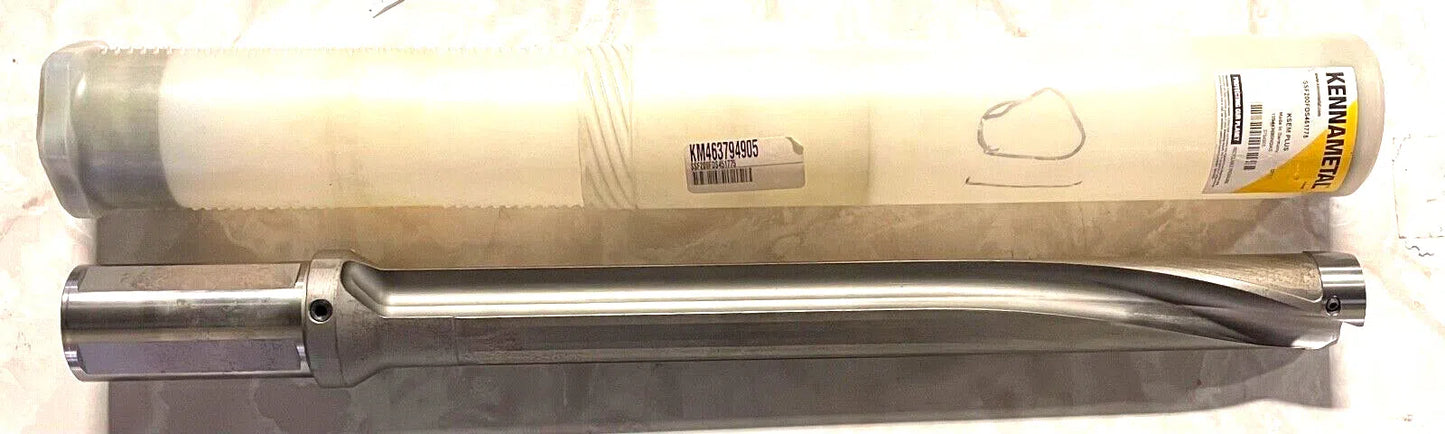

Kennametal SSF200FDS451775 Modular Drill KSEM PLUS 8xD Drill Body SSF Shank
Kennametal SSF200FDS451775 Modular Drill KSEM PLUS 8xD Drill Body SSF Shank
Regular price
$300.30 USD
Regular price
$0.00 USD
Sale price
$300.30 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
KENNAMETAL
KSEM PLUS™ • Drill Body • 8 x D • SSF Shank • Inch
Modular Drilling • Flanged Shank (SSF)
Shank Type | Round | Coolant Supply Property (CSP) | Coolant Thru |
Connection Diameter Machine Side (DCONMS) | 50.8 mm | Cutting Direction (HAND) | Neutral |
Protruding Length (LPR) | 451 mm | Style | FDS45 |
Functional Length (LF) | 451 mm | Series/List # | KSEM PLUS |
Overall Length (OAL) | 552.6 mm | Decimal Equivalent | 1.7126″ |
Shank Length (LS) | 101.6 mm |
Product Features
Remarks
•Straight fluted KSEM PLUS™ Tool holder. Very stable with large chip flutes and a precision FDS head clamping system. Combine with a KSEM PLUS™ A1 or B1 head and required carbide inserts.
•Save stock and tooling cost by exchanging a worn head and replacing it with a new one on the same tool holder.
•Flexibility due to our unique FDS clamping system: A certain size range of heads (A1 or B1) can be used depending on the tool holders FDS size (FDS 28 to FDS 120).
•Perfectly fitting into lathe applications with stable double flat shank, featuring a lateral coolant entry on the flange.
•Custom Solutions: Our KSEM PLUS™ tool holders are available with all popular shank styles. You can also order KSEM PLUS™ Tool Holders with 10° helixed chip flutes (e.g. for better chip removal in cast iron).
