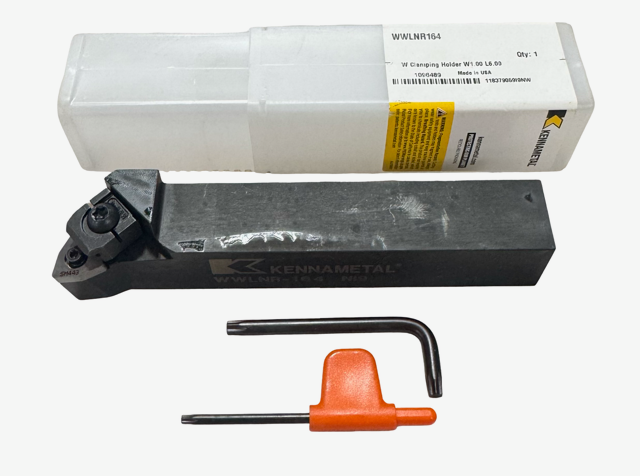

Kennametal WWLNR164 Indexable Turning Toolholder, 1" x 1" Shank, 6" Overall USA

PRODUCT DESCRIPTION

Specifications

Toolholder Style	WWLN
Hand of Holder	Right Hand
Insert Compatibility	TN..43.
Insert Holding Method	Screw; Clamp
Shank Width (Inch)	1

Shank Height (Inch)	1
Overall Length (Decimal Inch)	6.0000
Shank Height (mm)	25.40
Coolant Through	No
Rake	Negative
Rake Angle	-5
Multi-use Tool	No
Shank Width (Decimal Inch)	1.0000
Shank Height (Decimal Inch)	1.0000
Series	Wedgelock
Overall Length (Inch)	6
Head Length (Decimal Inch)	1.2500
Back of Bar to Cutting Edge (Decimal Inch)	1.2500
Insert Inscribed Circle (Decimal Inch)	0.5000
Insert Inscribed Circle (Inch)	1/2
Toolholder Material	Steel
Complete Insert Compatibility	WN.. 432
UNSPSC Code	23153308
Country of Origin	UNITED STATES
