Michigan Wholesale Tool Supply

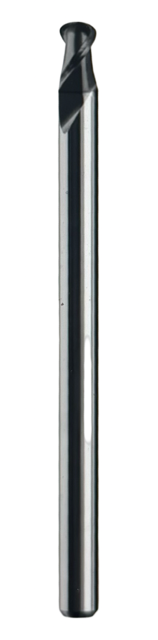

Kyocera .020" Carbide Ball Nose End Mill 2 Flute TA Coated
Kyocera .020" Carbide Ball Nose End Mill 2 Flute TA Coated
Regular price
$10.99 USD
Regular price
$0.00 USD
Sale price
$10.99 USD
Unit price
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 1 left
Couldn't load pickup availability
Kyocera .020" Carbide Ball Nose End Mill 2 Flute TA Coated
PRODUCT DESCRIPTION
| Series Description | Micro End Mill |
|---|---|
| End Configuration | Ball Nose |
| Tool Length | Stub |
| Unit (inch/mm) | inch |
| Number of Flutes | 2 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| LOC (xD) | 1.5xD |
| Cutting Diameter (DC) (Decimal Inch) | 0.0200 |
| Cutting Diameter (DC) (mm) | 0.51 |
| Shank Diameter (DCON) (Decimal Inch) | 0.1250 |
| Shank Diameter (DCON) (mm) | 3.18 |
| Length of Cut (APMX) (Decimal Inch) | 0.0300 |
| Length of Cut (APMX) (mm) | 0.76 |
| Overall Length (LF) (Decimal Inch) | 1.5000 |
| Overall Length (LF) (Fractional Inch) | 1-1/2 |
| Overall Length (LF) (mm) | 38.10 |
| Shank Length (LS) (Decimal Inch) | 1.4700 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0010 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.025 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Corner Radius (RE) Tolerance (Decimal Inch) | +0.0003/-0.0000 |
| Corner Radius (RE) Tolerance (mm) | +0.008/-0.000 |
|---|---|
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Profile Angle (Degree) | 15 |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 30 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| KPT Micro Crossover (Old Material Number) | 8503858 |
| KPT Micro Crossover (Part Number) | 1635-0200L030 |
| KPT Micro Crossover Type | Direct Match |
| Shipping Weight | 0.0105 |
| Series | M2B |
| US Stock | 21 |
| Shank Length (LS) (mm) | 37.34 |
| Shank Diameter (DCON) (Fractional Inch) | 1/8 |
| Coating Description | AlTiN (Ti-NAMITE-A) |
| Flute Type | Spiral |
