Low stock: 4 left

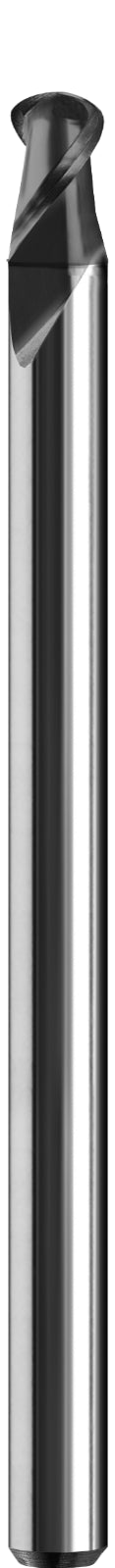

Kyocera .051" Carbide Ball Nose End Mill 2FL AlTiN Coating USA Made 02514

PRODUCT DESCRIPTION

KYOCERA

USA MADE

SOLID CARBIDE BALL NOSE END MILL

Cutting Diameter (DC)	0.051″	Length Group	1.5D
Connection Diameter Machine Side (DCONMS)	1/8″	End Shape	Ball Nose
Depth of Cut Maximum (APMX)	0.077″	Flute Type	Spiral
Overall Length (OAL)	‎1-1/2″	Coolant Supply Property (CSP)	External
Cutting Edge Material	Carbide	Body Material	Carbide
Coating	ALTIN	Style	Ball Nose
Flute Count (NOF)	2	Series/List #	M2B
Flute Helix Angle (FHA)	30 Degrees	Shank Length (LS)	1.423″
Shank Type	Round	Cutting Direction (HAND)	Right Hand
Applicable Material	| Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials |	Center Cutting	Yes
Neck Diameter (DN)	0.0479″	Single / Double End	Single End
