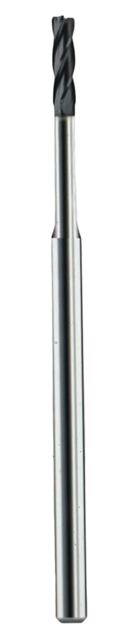

Kyocera .060" Carbide End Mill 4 Flute TA Coated Long Reach Neck

PRODUCT DESCRIPTION

Series Description	Micro End Mill
End Configuration	Square End
Tool Length	Long Reach Neck
Unit (inch/mm)	inch
Number of Flutes	4
Primary Workpiece Material	(P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy
Secondary Workpiece Material	(H) Hardened Materials
Reach (xD)	8xD
LOC (xD)	3xD
Cutting Diameter (DC) (Decimal Inch)	0.0600
Cutting Diameter (DC) (mm)	1.52
Shank Diameter (DCON) (Decimal Inch)	0.1250
Shank Diameter (DCON) (mm)	3.18
Length of Cut (APMX) (Decimal Inch)	0.1800
Length of Cut (APMX) (mm)	4.57
Reach (LU) (Decimal Inch)	0.4800
Reach (LU) (mm)	12.19
Overall Length (LF) (Decimal Inch)	2.0000
Overall Length (LF) (Fractional Inch)	2
Overall Length (LF) (mm)	50.80
Neck Diameter (DN) (Decimal Inch)	0.7670
Neck Diameter (DN) (mm)	19.48

Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.0010
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.025
Shank Diameter (DCON) Tolerance (ISO)	h6
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Rake Angle	Positive
Profile Angle (Degree)	15
Helix Angle	Right Spiral
Helix Angle (Degree)	30
Variable Helix	No
Center Cutting	Yes
Chip Breaker	No
KPT Micro Crossover Type	Alternate
Shipping Weight	0.0130
Series	M4S
US Stock	0
Shank Diameter (DCON) (Fractional Inch)	1/8
Coating Description	AlTiN (Ti-NAMITE-A)
