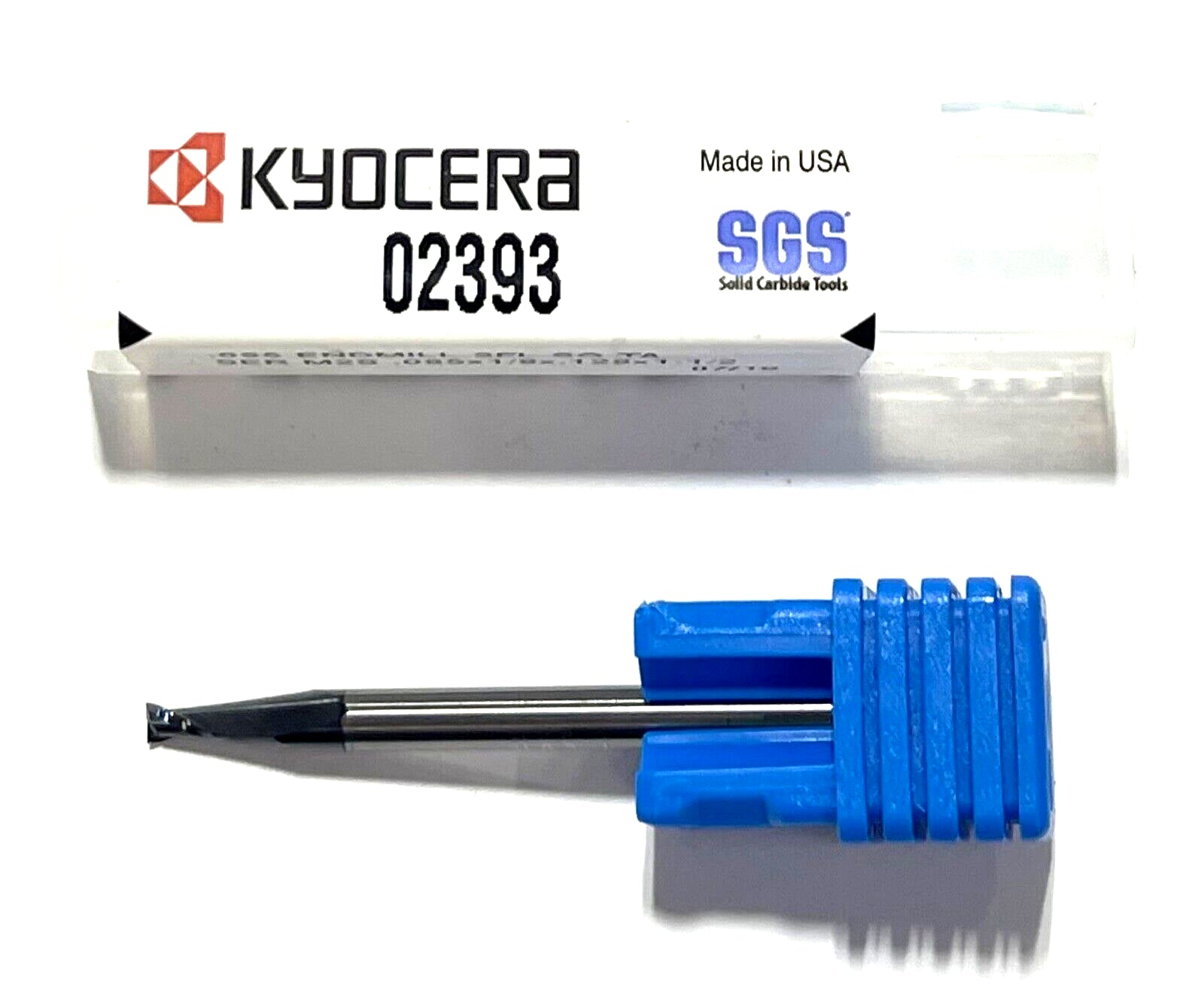

Kyocera .085" Carbide End Mill TA Coating 2 Flute USA Made 02393

PRODUCT DESCRIPTION

KYOCERA

USA MADE

SOLID CARBIDE END MILL

Cutting Diameter (DC)	0.085″	End Shape	Square
Connection Diameter Machine Side (DCONMS)	1/8″	Usable Length (LU)	1.372″
Depth of Cut Maximum (APMX)	0.128″	Corner Radius (RE)	0″
Overall Length (OAL)	‎1-1/2″	Flute Type	Spiral
Cutting Edge Material	Carbide	Coolant Supply Property (CSP)	External
Coating	TA	Decimal Equivalent	0.085″
Flute Count (NOF)	2	Measurement Type	Inch
Flute Helix Angle (FHA)	30 Degrees	Series/List #	M2S
Shank Type	Round
