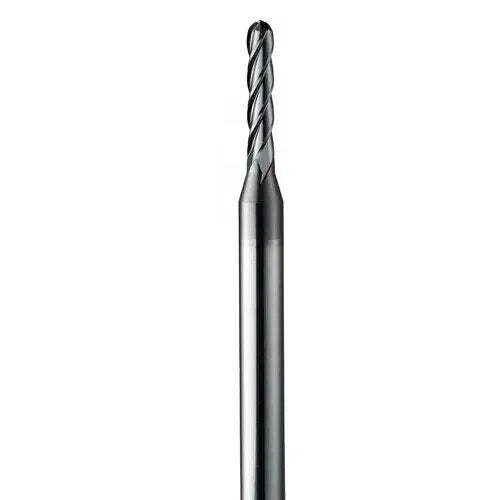

Kyocera 1.2mm Carbide Ball Nose End Mill AlTiN Coating 30° Helix USA Made 02929
Kyocera 1.2mm Carbide Ball Nose End Mill AlTiN Coating 30° Helix USA Made 02929
Regular price
$5.09 USD
Regular price
$0.00 USD
Sale price
$5.09 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 4 left
Couldn't load pickup availability
RAPIDKUT
USA MADE
SOLID CARBIDE BALL NOSE END MILL
| Cutting Diameter (DC) | 1.2 mm | Length Group | 1.5D |
| Connection Diameter Machine Side (DCONMS) | 3 mm | End Shape | Ball Nose |
| Depth of Cut Maximum (APMX) | 1.8 mm | Flute Type | Spiral |
| Overall Length (OAL) | 38 mm | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN | Style | Ball Nose |
| Flute Count (NOF) | 4 | Series/List # | M4BM |
| Flute Helix Angle (FHA) | 30 Degrees | Shank Length (LS) | 1.4252 mm |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 36 mm | Center Cutting | Yes |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | Single / Double End | Single End |
| Neck Diameter (DN) | 0.0444″ |
