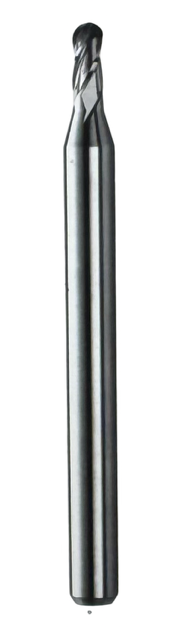

Kyocera 1.50mm Carbide Ball Nose End Mill 4 Flute TA Coated

PRODUCT DESCRIPTION

Series Description	Micro End Mill
End Configuration	Ball Nose
Tool Length	Regular
Unit (inch/mm)	mm
Number of Flutes	4
Primary Workpiece Material	(P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy
Secondary Workpiece Material	(H) Hardened Materials
LOC (xD)	3xD
Cutting Diameter (DC) (Decimal Inch)	0.0591
Cutting Diameter (DC) (mm)	1.50
Shank Diameter (DCON) (Decimal Inch)	0.1575
Shank Diameter (DCON) (mm)	4.00
Length of Cut (APMX) (Decimal Inch)	0.1772
Length of Cut (APMX) (mm)	4.50
Overall Length (LF) (Decimal Inch)	1.9685
Overall Length (LF) (mm)	50.00
Shank Length (LS) (Decimal Inch)	1.7913
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.0010
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.025
Shank Diameter (DCON) Tolerance (ISO)	h6

Corner Radius (RE) Tolerance (Decimal Inch)	+0.0003/-0.0000
Corner Radius (RE) Tolerance (mm)	+0.008/-0.000
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Rake Angle	Positive
Profile Angle (Degree)	15
Helix Angle	Right Spiral
Helix Angle (Degree)	30
Variable Helix	No
Center Cutting	Yes
Chip Breaker	No
KPT Micro Crossover Type	Alternate
Shipping Weight	0.0230
Series	M4BM
US Stock	53
Shank Length (LS) (mm)	45.50
Coating Description	AlTiN (Ti-NAMITE-A)
Flute Type	Spiral
