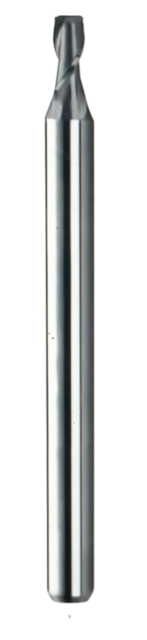

Kyocera 1.80mm Solid Carbide End Mill 2 Flute TA Coated

PRODUCT DESCRIPTION

Series Description	Micro End Mill
End Configuration	Square End
Tool Length	Regular
Unit (inch/mm)	mm
Number of Flutes	2
Primary Workpiece Material	(P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy
Secondary Workpiece Material	(H) Hardened Materials
LOC (xD)	3xD
Cutting Diameter (DC) (Decimal Inch)	0.0709
Cutting Diameter (DC) (mm)	1.80
Shank Diameter (DCON) (Decimal Inch)	0.1181
Shank Diameter (DCON) (mm)	3.00
Length of Cut (APMX) (Decimal Inch)	0.2126
Length of Cut (APMX) (mm)	5.40
Overall Length (LF) (Decimal Inch)	1.4961
Overall Length (LF) (mm)	38.00
Shank Length (LS) (Decimal Inch)	1.2835
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.0010
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.025
Shank Diameter (DCON) Tolerance (ISO)	h6

Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Rake Angle	Positive
Profile Angle (Degree)	15
Helix Angle	Right Spiral
Helix Angle (Degree)	30
Variable Helix	No
Center Cutting	Yes
Chip Breaker	No
KPT Micro Crossover (Old Material Number)	8502803
KPT Micro Crossover (Part Number)	1610-0709L213
KPT Micro Crossover Type	Direct Match
Shipping Weight	0.0121
Series	M2SM
