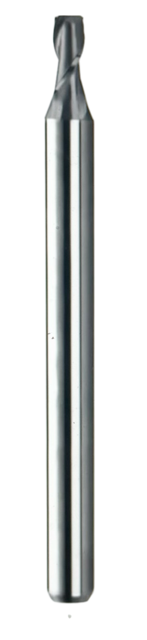

Kyocera 1.90mm Solid Carbide End Mill 2 Flute TA Coated

PRODUCT DESCRIPTION

Series Description	Micro End Mill
End Configuration	Square End
Tool Length	Stub
Unit (inch/mm)	mm
Number of Flutes	2
Primary Workpiece Material	(P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy
Secondary Workpiece Material	(H) Hardened Materials
LOC (xD)	1.5xD
Cutting Diameter (DC) (Decimal Inch)	0.0748
Cutting Diameter (DC) (mm)	1.90
Shank Diameter (DCON) (Decimal Inch)	0.1575
Shank Diameter (DCON) (mm)	4.00
Length of Cut (APMX) (Decimal Inch)	0.1102
Length of Cut (APMX) (mm)	2.80
Overall Length (LF) (Decimal Inch)	1.9685
Overall Length (LF) (mm)	50.00
Shank Length (LS) (Decimal Inch)	1.8583
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.0010
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.025

Shank Diameter (DCON) Tolerance (ISO)	h6
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Rake Angle	Positive
Profile Angle (Degree)	15
Helix Angle	Right Spiral
Helix Angle (Degree)	30
Variable Helix	No
Center Cutting	Yes
Chip Breaker	No
KPT Micro Crossover Type	Alternate
Shipping Weight	0.0130
Series	M2SM
US Stock	0
Shank Length (LS) (mm)	47.20
Coating Description	AlTiN (Ti-NAMITE-A)
Flute Type	Spiral
