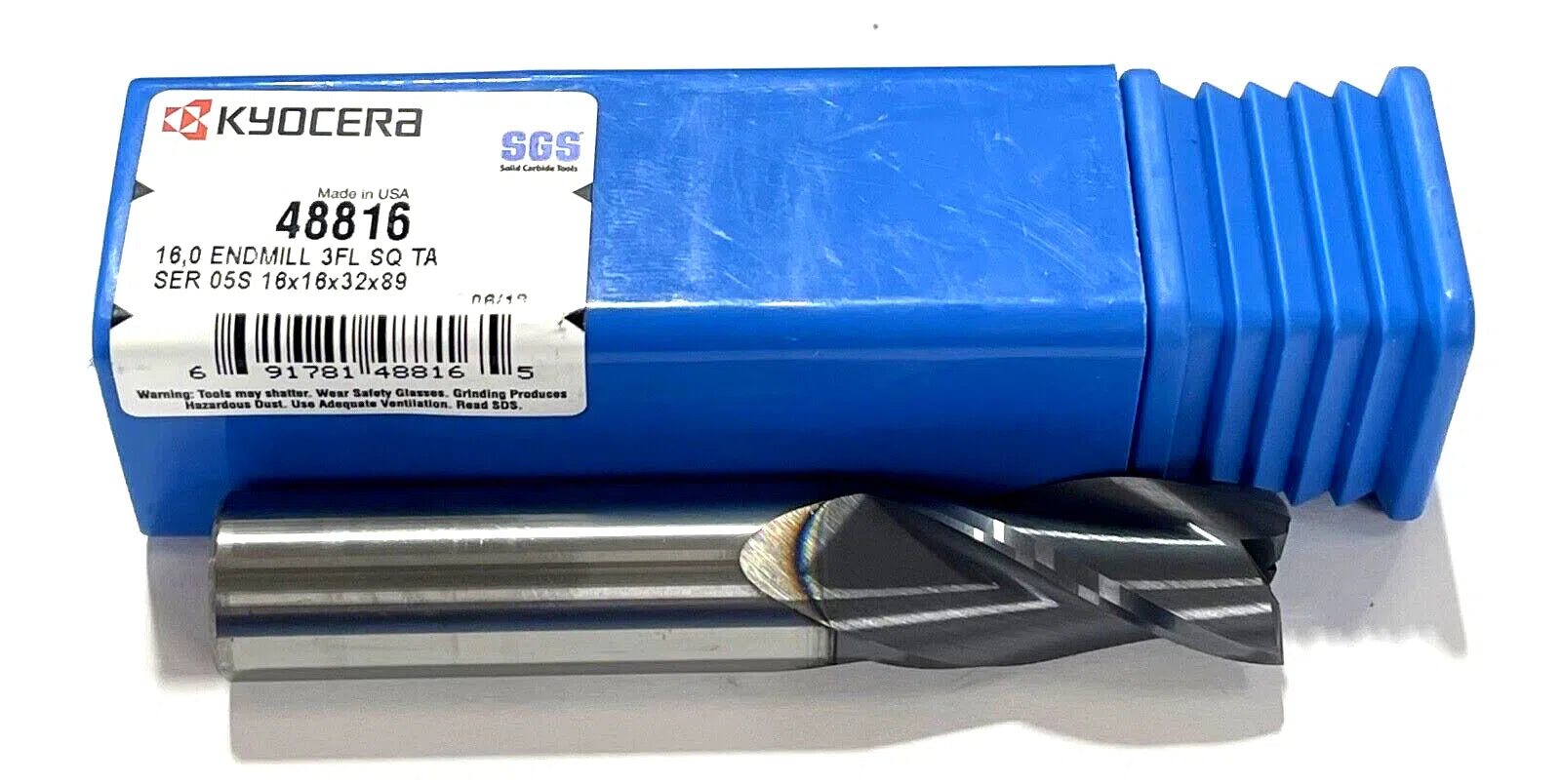

Kyocera 16mm Carbide End Mill TA Coating 3 Flute USA Made 48816
Kyocera 16mm Carbide End Mill TA Coating 3 Flute USA Made 48816
Regular price
$25.48 USD
Regular price
$0.00 USD
Sale price
$25.48 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 4 left
Couldn't load pickup availability
KYOCERA
USA MADE
SOLID CARBIDE END MILL
| Cutting Diameter (DC) | 16 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Usable Length (LU) | 57 mm |
| Depth of Cut Maximum (APMX) | 32 mm | Corner Radius (RE) | 0 mm |
| Overall Length (OAL) | 89 mm | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TA | Decimal Equivalent | 0.6299″ |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 05S |
| Shank Type | Round |
