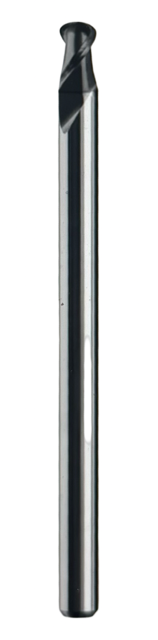

Kyocera 2.50mm Carbide Ball Nose End Mill 2 Flute TA Coated

PRODUCT DESCRIPTION

Series Description	Micro End Mill
End Configuration	Ball Nose
Tool Length	Stub
Unit (inch/mm)	mm
Number of Flutes	2
Primary Workpiece Material	(P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy
Secondary Workpiece Material	(H) Hardened Materials
LOC (xD)	1.5xD
Cutting Diameter (DC) (Decimal Inch)	0.0984
Cutting Diameter (DC) (mm)	2.50
Shank Diameter (DCON) (Decimal Inch)	0.1181
Shank Diameter (DCON) (mm)	3.00
Length of Cut (APMX) (Decimal Inch)	0.1476
Length of Cut (APMX) (mm)	3.75
Overall Length (LF) (Decimal Inch)	1.4961
Overall Length (LF) (mm)	38.00
Shank Length (LS) (Decimal Inch)	1.3485
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.0010
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.025
Shank Diameter (DCON) Tolerance (ISO)	h6
Corner Radius (RE) Tolerance (Decimal Inch)	+0.0003/-0.0000

Corner Radius (RE) Tolerance (mm)	+0.008/-0.000
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Rake Angle	Positive
Profile Angle (Degree)	15
Helix Angle	Right Spiral
Helix Angle (Degree)	30
Variable Helix	No
Center Cutting	Yes
Chip Breaker	No
KPT Micro Crossover (Old Material Number)	8503967
KPT Micro Crossover (Part Number)	1635-0984L148
KPT Micro Crossover Type	Direct Match
Shipping Weight	0.0121
Series	M2BM
US Stock	35
Shank Length (LS) (mm)	34.25
Coating Description	AlTiN (Ti-NAMITE-A)
Flute Type	Spiral
