Michigan Wholesale Tool Supply

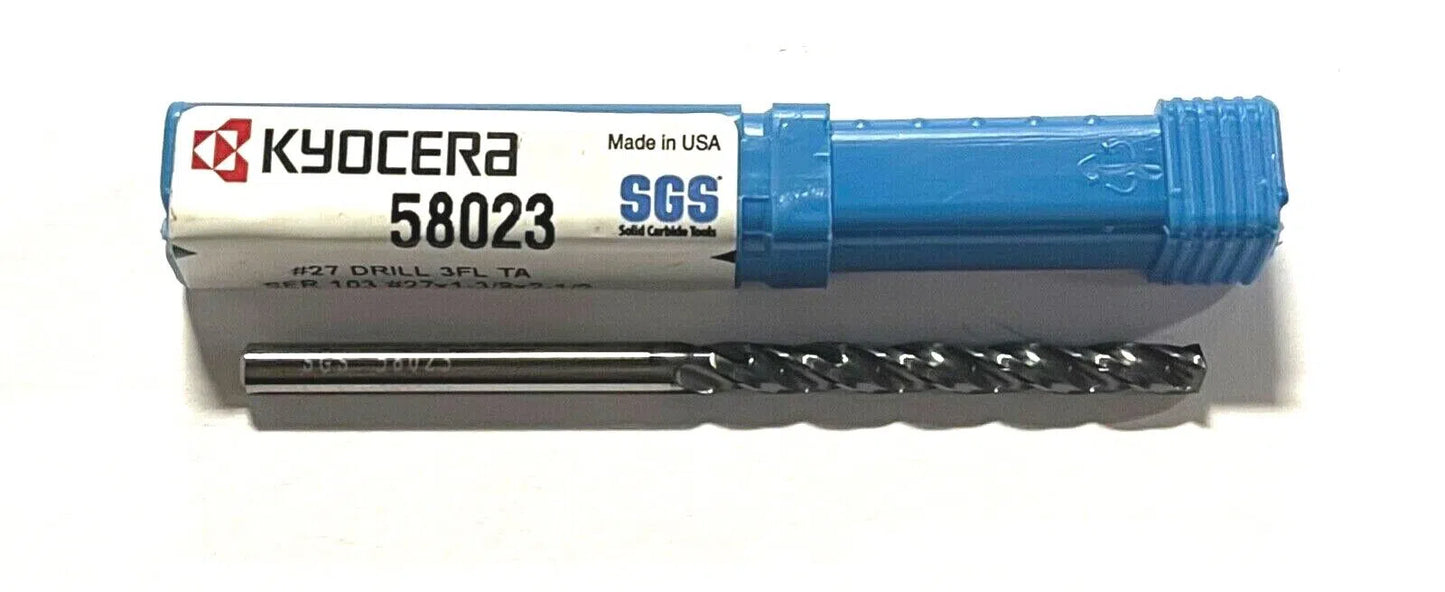

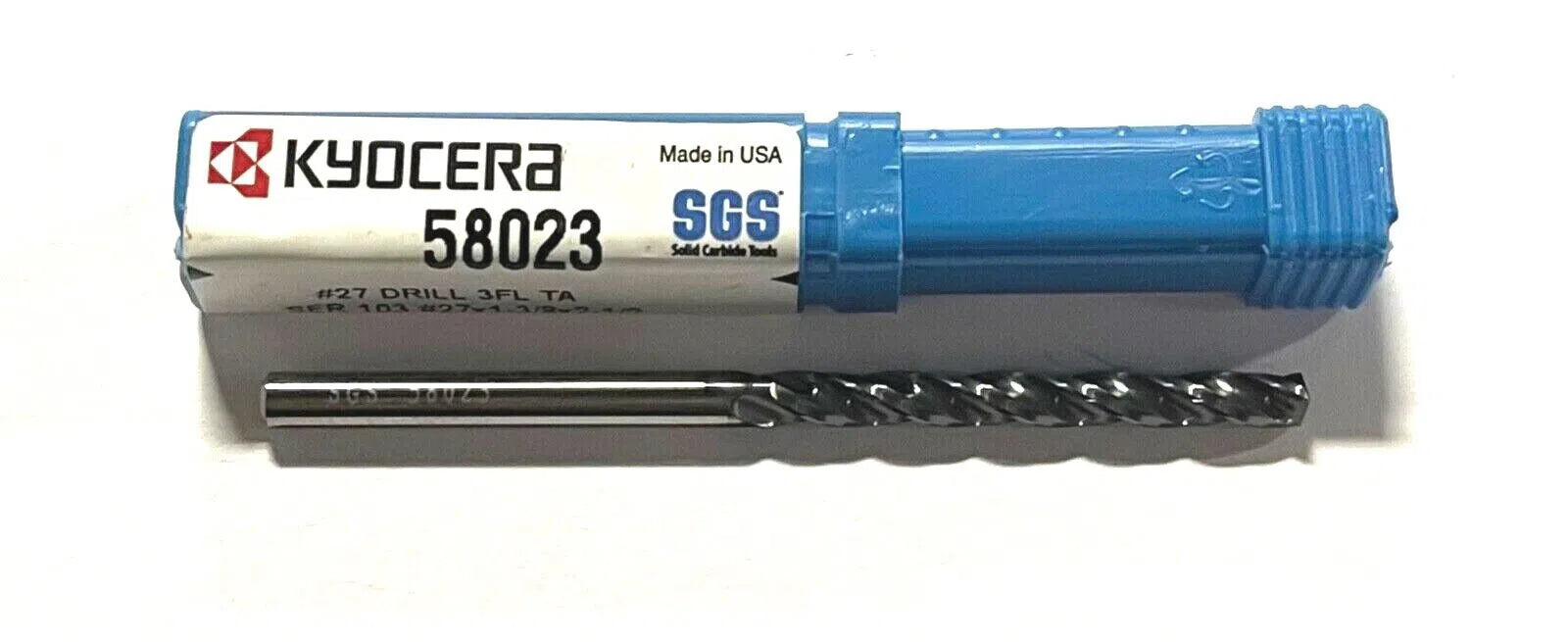

Kyocera #27 Solid Carbide Drill 5xD TA Coating 3 Flute 150° USA Made 58023
Kyocera #27 Solid Carbide Drill 5xD TA Coating 3 Flute 150° USA Made 58023
Regular price
$11.21 USD
Regular price
$0.00 USD
Sale price
$11.21 USD
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $25 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $25.
Quantity
21 in stock
Couldn't load pickup availability
KYOCERA
USA MADE
SOLID CARBIDE DRILL
| Drill Bit Size / Cutting Diameter (DC) | #27 | Tool Type | Drill |
| Decimal Equivalent | 0.144″ | Length Below Shank | 1.22″ |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #27 | Flute Type | Spiral |
| Length Group | 5xD | Measurement Type | Wire Gauge |
| Coating | TA | Series/List # | 103 |
| Connection Diameter Machine Side (DCONMS) | 0.144″ | Usable Length (LU) | 1.1094″ |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 1-3/8″ |
| Point Angle (SIG) | 150 Degrees | Overall Length (OAL) | 2-1/2″ |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 3 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
