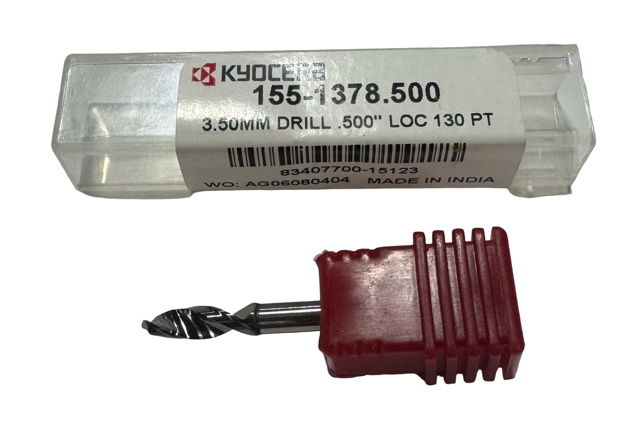

Kyocera 3.50mm Solid Carbide Drill 130° Point 2 Flute

PRODUCT DESCRIPTION

eries Description	Micro Drill - Inverse Diameter
Unit (inch/mm)	mm
Number of Flutes	2
Primary Workpiece Material	(N) Non-Ferrous Materials
Secondary Workpiece Material	(S) High Temp Alloy
Size	3.50mm
Cutting Diameter (DC) (Decimal Inch)	0.1378
Cutting Diameter (DC) (mm)	3.50
Shank Diameter (DCON) (Decimal Inch)	0.1250
Shank Diameter (DCON) (mm)	3.18
Flute Length (LCF) (Decimal Inch)	0.5000
Flute Length (LCF) (mm)	12.70
Overall Length (OAL) (Decimal Inch)	1.5000
Overall Length (OAL) (Fractional Inch)	1-1/2
Overall Length (OAL) (mm)	38.10
Shank Length (LS) (Decimal Inch)	1.0000
Point Angle (Degree)	130
Shank Diameter (DCON) Tolerance (ISO)	h6
Shank Type	Straight
Coolant Option	External Coolant

Additional Geometry	Right Hand Cut Direction (RHC)
Helix Angle	Right Spiral
Helix Angle (Degree)	30
Center Cutting	No
Number of Margins	1
KPT Micro Crossover (Old Material Number)	8502138
KPT Micro Crossover (Part Number)	155-1378.500
KPT Micro Crossover Type	Direct Match
Shipping Weight	0.0130
Series	M155
US Stock	67
Shank Length (LS) (mm)	25.40
Shank Diameter (DCON) (Fractional Inch)	1/8
Usable Length (LU) (Decimal Inch)	0.5000
Usable Length (LU) (mm)	12.70
Coating Description	Bright/Uncoated
Double Margins (Yes/No)	No
