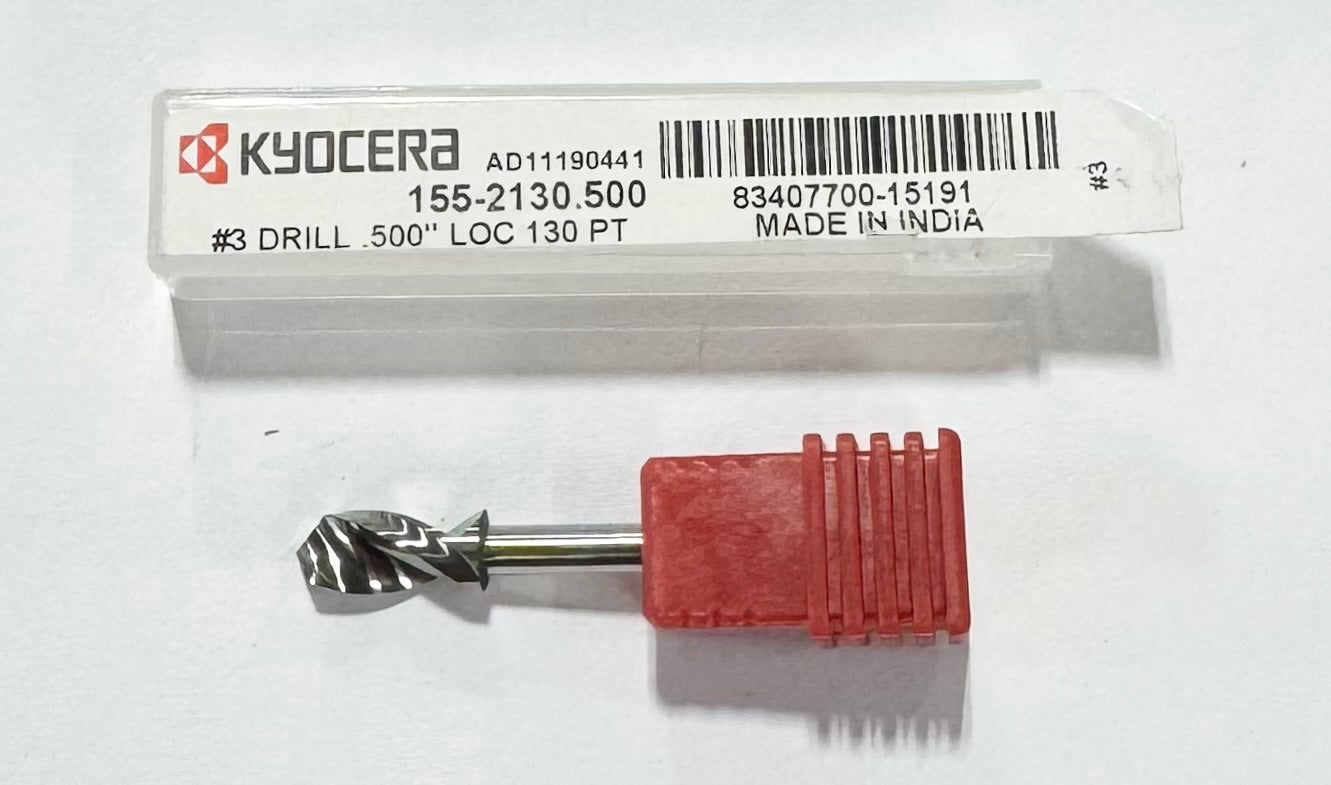

Kyocera #3 Solid Carbide Circuit Board Drill 130 Degree Point
Kyocera #3 Solid Carbide Circuit Board Drill 130 Degree Point
Regular price
$4.99 USD
Regular price
$0.00 USD
Sale price
$4.99 USD
Unit price
/
per
Low stock: 5 left
Kyocera #3 Solid Carbide Circuit Board Drill 130 Degree Point
PRODUCT DESCRIPTION
Drill Bit Size (Wire) | #3 |
Drill Bit Size (Decimal Inch) | 0.2130 |
Drill Bit Size (mm) | 5.41 |
Drill Point Angle | 130 |
Tool Material | Solid Carbide |
Shank Diameter (Decimal Inch) | 0.1250 |
Shank Diameter (Inch) | 1/8 |
Shank Diameter (mm) | 3.18 |
Flute Length (Inch) | 1/2 |
Flute Length (mm) | 12.70 |
Flute Length (Decimal Inch) | 0.5000 |
Overall Length (mm) | 38.10 |
Overall Length (Inch) | 1-1/2 |
Spiral Type | Regular |
Series | 155 |
Web Configuration | Tapered |
Cutting Direction | Right Hand |
Drill Bit Diameter Tolerance (Decimal Inch) | -0.0003 - 0.0000 |
Material Application | Aluminum; Stainless Steel; Cast Iron; Cobalt Alloy; Titanium; Nickel; Plastic; Copper Alloy; Fiber-Reinforced Plastic |
