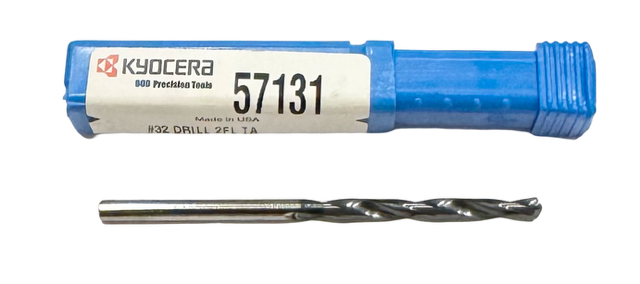

Kyocera #37 Solid Carbide Drill 5xD 2 Flute AlTiN Coated 118 Deg USA Made

PRODUCT DESCRIPTION

Description	SC Drill; #32 Dia. x 0.116" Shank Dia. x 2-1/4" OAL x 1-1/4" LCF ; 118 Degrees ; 5xD ; Spiral Flute ; AlTiN ; Series 101
Brand	Kyocera SGS Precision Tools
Coating	TA
Connection Diameter Machine Side Dconms	0.116"
Coolant Supply Property CSP	External
Cutting Direction Hand	Right-Hand
Cutting Edge Material	Carbide
Decimal Equivalent	0.116"
Drill Bit Size Cutting Diameter DC	#32
Flute Count Nof	2
Flute Helix Angle Fha	20 Degrees
Flute Type	Spiral
Length Chip Flute LCF	1-1/4"
Length Group	5xD
Measurement Type	Wire Gauge
Overall Length Oal	2-1/4"
Point Angle Sig	118 Degrees
Serieslist	101
Shank Type	Round
Tool Type	Drill
Usable Length Lu	1"
