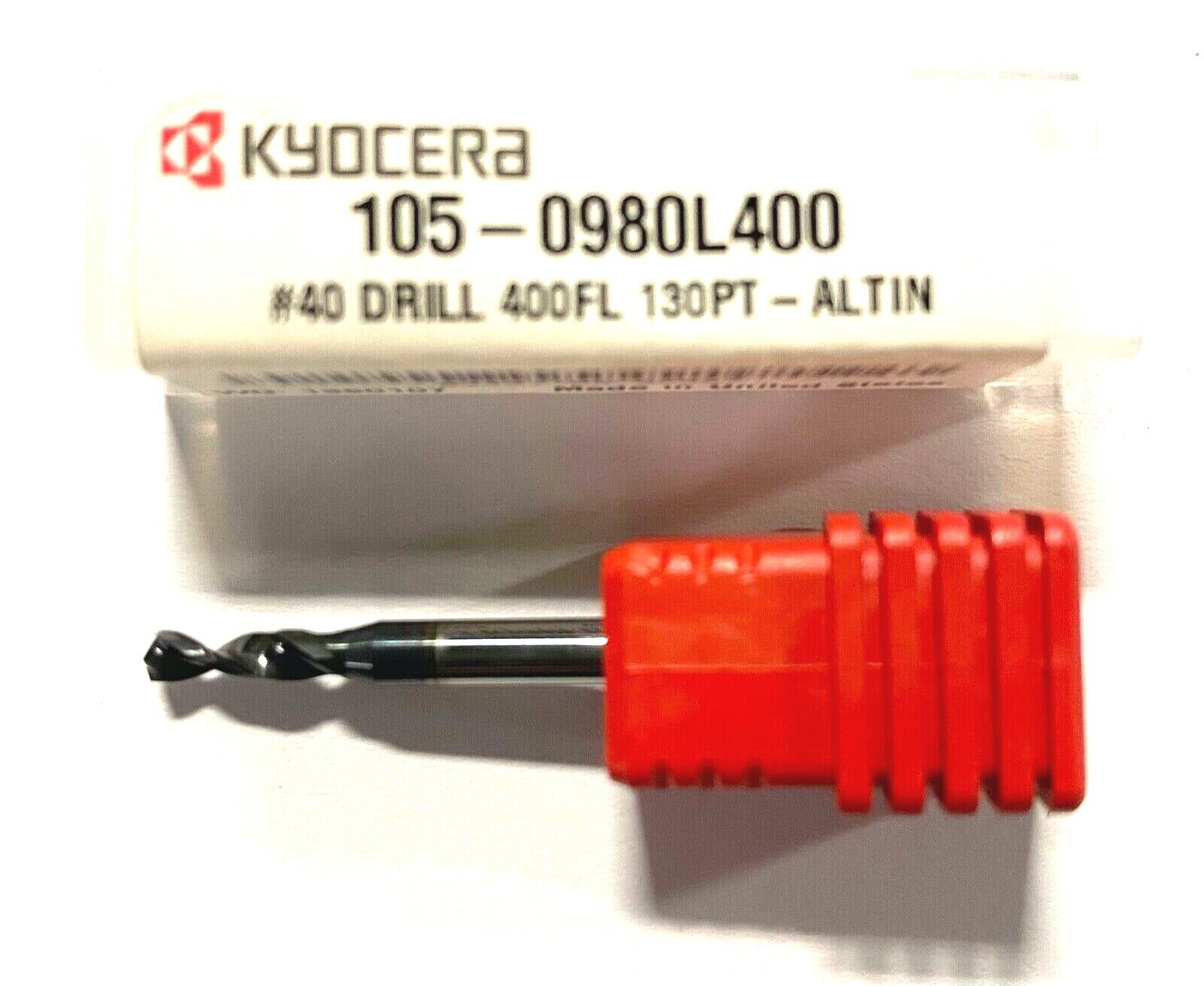

• Kyocera #40 Solid Carbide Micro Drill AlTiN Coated 130° Point USA Made
1 1

Michigan Wholesale Tool Supply

Kyocera #40 Solid Carbide Micro Drill AlTiN Coated 130° Point USA Made

Kyocera #40 Solid Carbide Micro Drill AlTiN Coated 130° Point USA Made

$3.27 USD
$0.00 USD $3.27 USD
Sale Sold out
Shipping calculated at checkout.
Free Shipping: Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our Shipping Policy for more details.

Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.

No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.

20 in stock
KYOCERA

USA MADE

SOLID CARBIDE DRILL
Grade: Micrograin Carbide Drill Bit Material: Solid Carbide
Item: Micro Drill Bit Drill Bit Dimension Type: Wire
Number of Pieces: 1 Shank Type: Straight
Drill Bit Point Angle: 130 Degrees Point Type: 4 Facet
Drill Bit Finish: AlTiN Drill Bit Size: #40
Decimal Equivalent: 0.0980 Coolant Through: No
List Number: 105 Shank Dia.: 1/8 in
Number of Flutes: 2 Flute Length: 3/8 in
Application: Metalworking Overall Length: 1 1/2 in
Cutting Direction: Right Hand Coolant Fed: Non-Coolant Through
Material - Machining: Carbide Aircraft Drill: No
Series: 105 Circuit Board Drill: No
Web Construction: Split Drill Diameter Tolerance: +0.00mm/-0.0003mm
Primary Material Application ISO Code: H, M, P Primary Material Application: Brass, Carbon Fiber, Cast Iron, Composite, Copper, Graphite, Hardened Steel, Nickel, Titanium
Spiral Direction: Right Hand Drill Bit Point Type: 4 Facet Point
Finish - Machining: AlTiN Drill Length Class: Micro Length
Web Thinning: X-Thinned Shank Type - Machining: Straight
Measurement System: Wire Flute Type: Spiral
Maximum Drilling Depth: 0.4000 in Material Grade - Machining: Sub Micron
Standards: Not Rated Country of Origin (subject to change): United States
