Michigan Wholesale Tool Supply

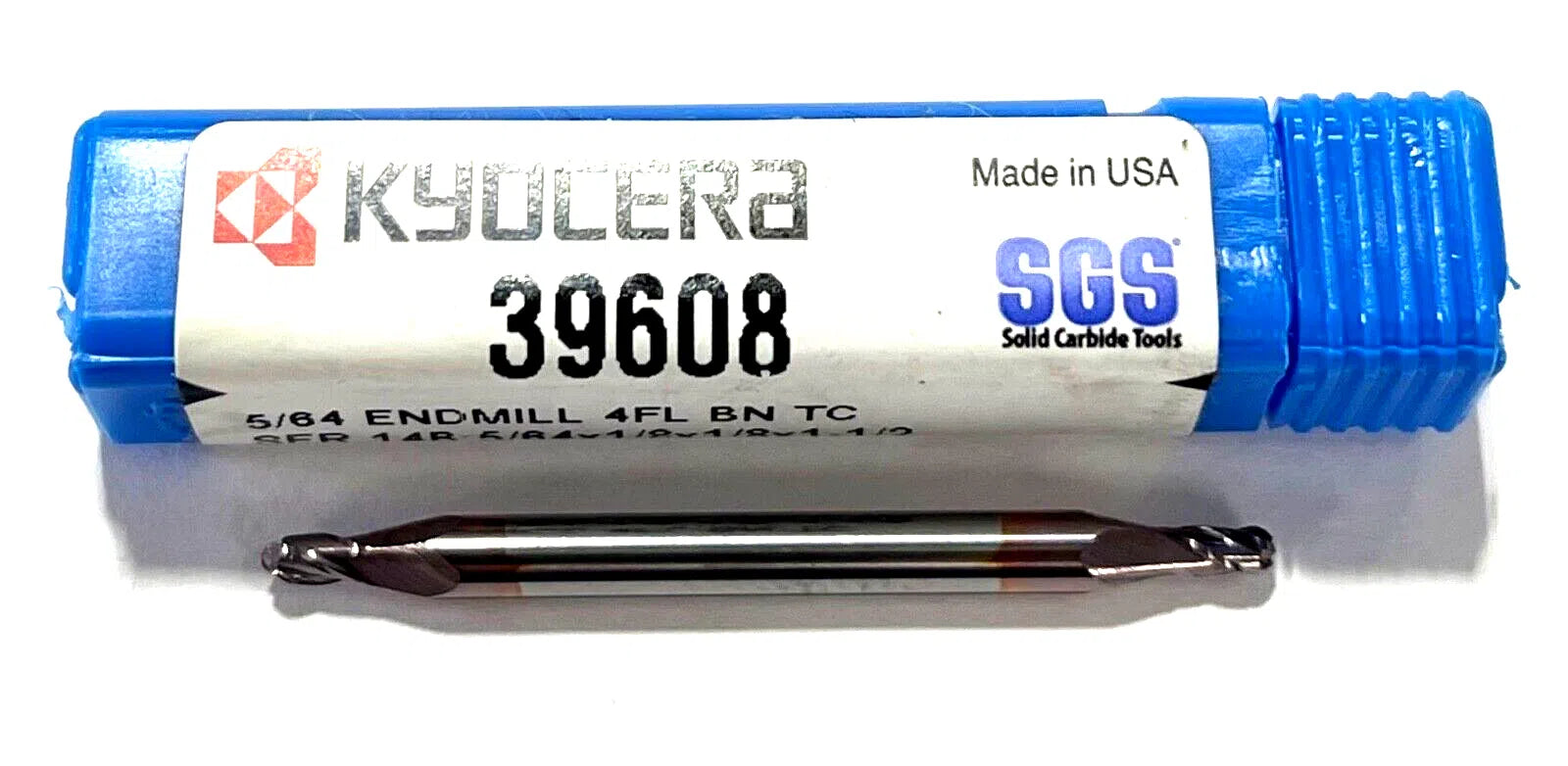

Kyocera 5/64" Carbide Ball Nose Double End Mill TiCN Coating 4 Flute USA 39608
Kyocera 5/64" Carbide Ball Nose Double End Mill TiCN Coating 4 Flute USA 39608
Regular price
$8.37 USD
Regular price
$0.00 USD
Sale price
$8.37 USD
Unit price
/
per
Shipping calculated at checkout.
11 in stock
Couldn't load pickup availability
MONSER TOOL COMPANY
USA MADE
SOLID CARBIDE BALL NOSE DOUBLE END MILL
| Cutting Diameter (DC) | 5/64″ | End Shape | Ball Nose |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Flute Type | Spiral |
| Depth of Cut Maximum (APMX) | 1/8″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 1-1/2″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Style | Ball Nose |
| Coating | TiCN | Decimal Equivalent | 0.0781″ |
| Flute Count (NOF) | 4 | Series/List # | 14B |
| Flute Helix Angle (FHA) | 30 Degrees | Shank Length (LS) | 1-3/8″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 1/8″ | Center Cutting | Yes |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | |
