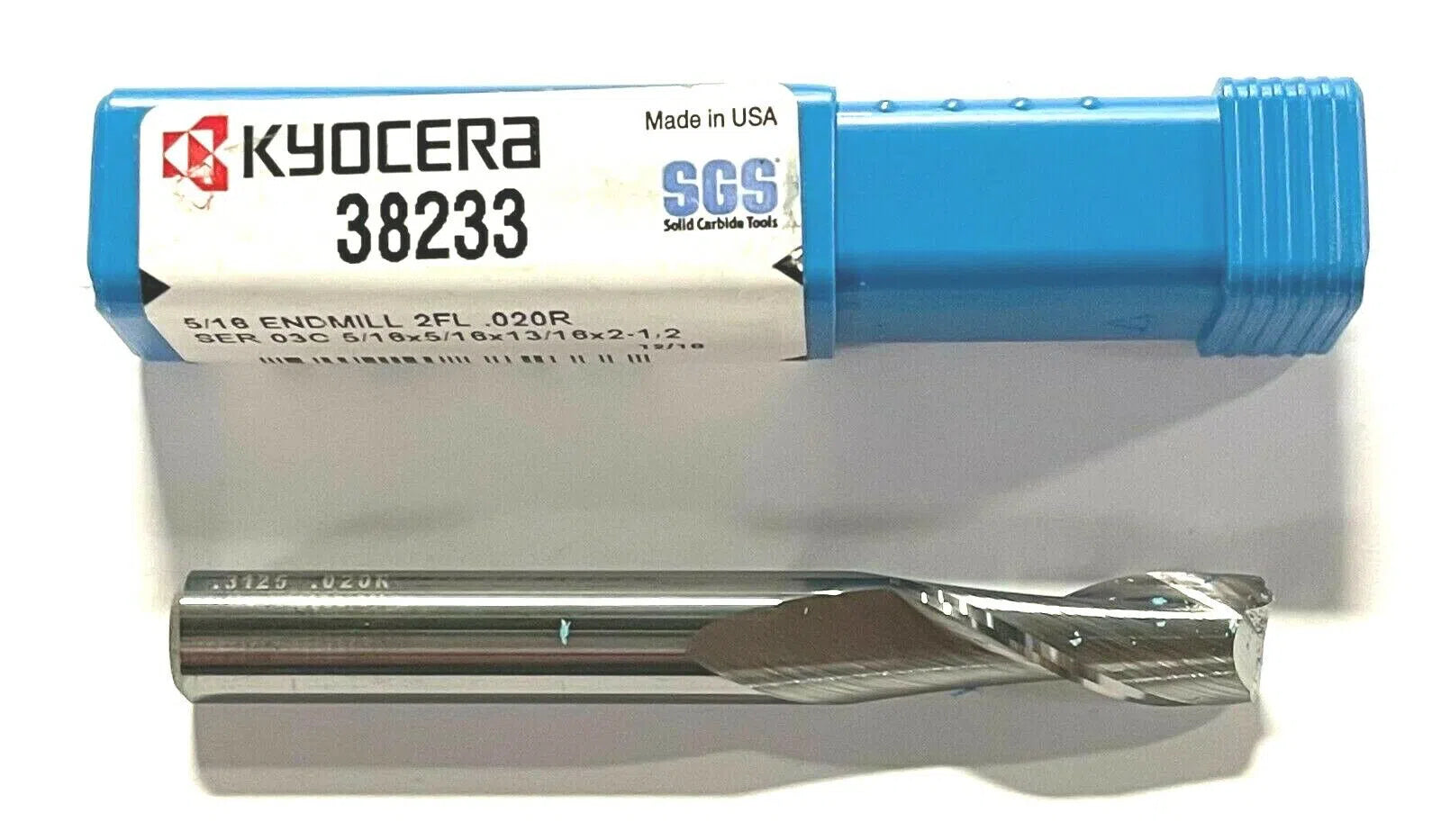

Kyocera Carbide End Mill 5/16" x 5/16" x 13/16" x 2-1/2" .020 Radius 2 Flute USA
Kyocera Carbide End Mill 5/16" x 5/16" x 13/16" x 2-1/2" .020 Radius 2 Flute USA
Regular price
$6.79 USD
Regular price
$0.00 USD
Sale price
$6.79 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
KYOCERA
USA MADE
SOLID CARBIDE END MILL
| Cutting Diameter (DC) | 5/16″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 13/16″ | Usable Length (LU) | 1-11/16″ |
| Overall Length (OAL) | 2-1/2″ | Corner Radius (RE) | 0.02″ |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.3125″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 03C |
